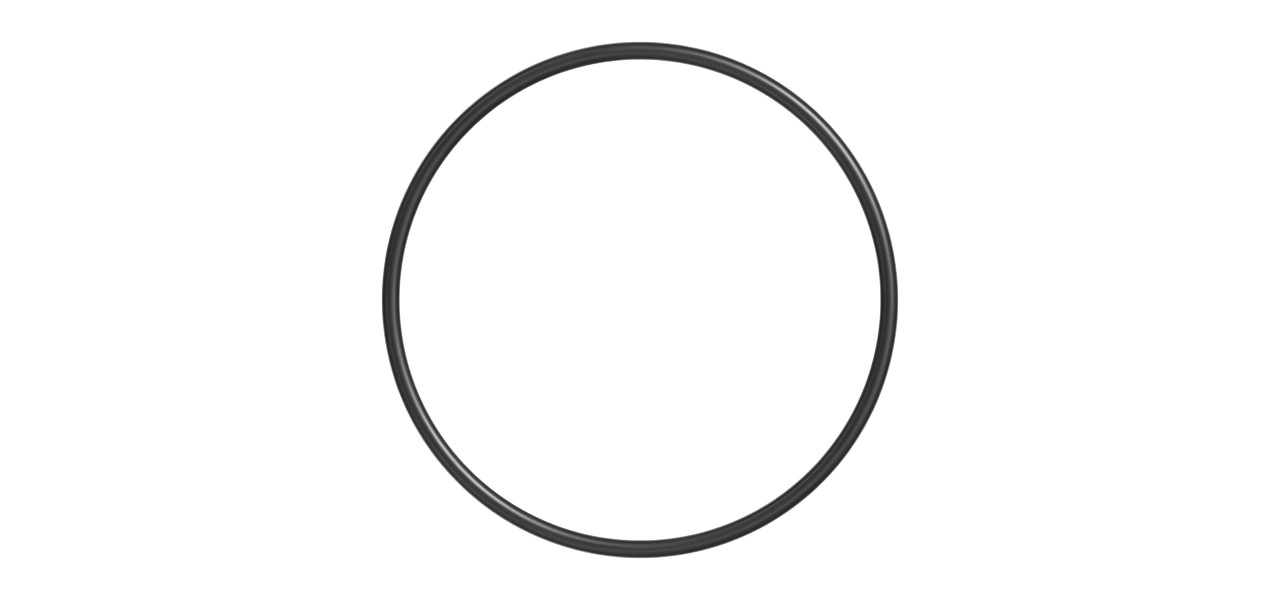

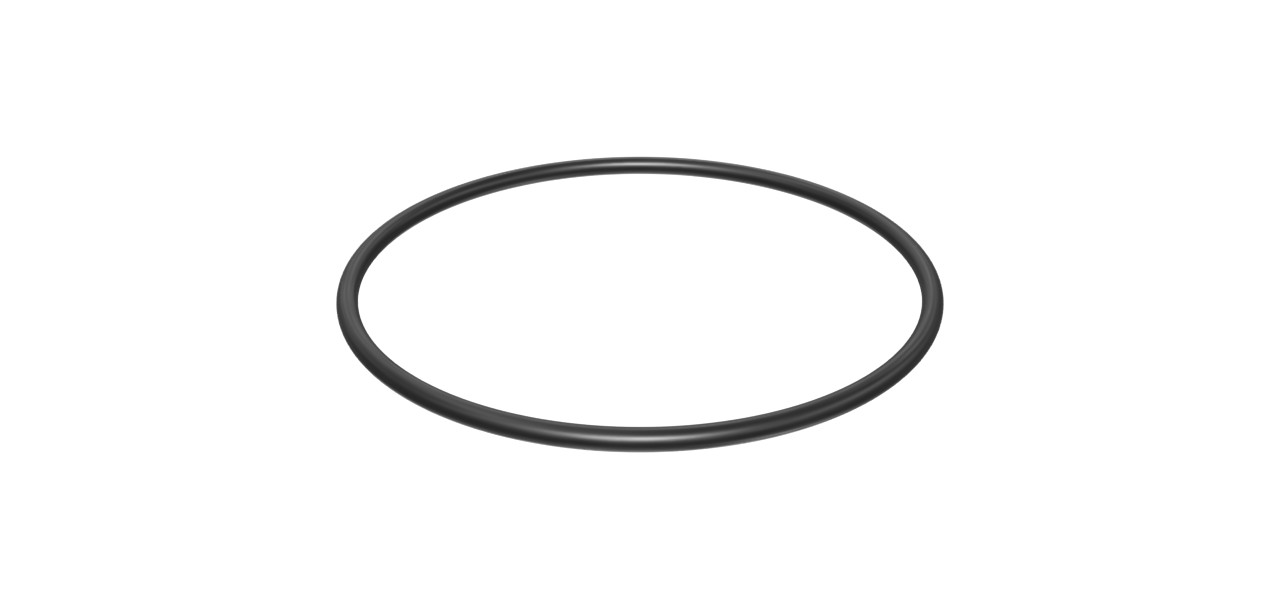

98.02mm Inside Diameter Seal-O-Ring

SKU: 9X-4611
1 piece
Categories
Sellers

Details

O-Rings are used in static sealing and some dynamic applications. Attributes: Cat® O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.With over 2500 O-Rings in different sizes and materials, Cat O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs.Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals.Applications:O-Rings are used in many static and dynamic joints throughout Cat machines and engines.

Specifications

Part TypeSeal O Ring
Depth (cm)0.20
Width (cm)10.50
Volume (cm3)22.05
Inside Diameter (mm)98.02
Cross Section Diameter (mm)3.53

Compatible Models

BACKHOE LOADER
415415F2416416B416C416D416E416F416F2420420D420E420F420F2420XE422E422F422F2424D426426B426C427F2428428B428C428D428E428F428F2430430D430E430F430F2432432D432E432F432F2434434E434F434F2436436B436C438438B438C438D440442D442E444444E444F444F2446446B450E450F
BULLDOZER
10SU10U6A6S6SU7A7S7SU7U8A8SU8U9SU9U
CHALLENGER
6565B65C65D70C7575C
COMPACT WHEEL LOADER
906908
ELECTRIC ROPE SHOVEL
74957495 HF
EXCAVATOR
320320 L320-A320-A L320-A N320-A S320N345B II345B L345C L350-A350-A L375-A375-A LM320
HYDRAULIC SHOVEL
60206020B60306060
INTEGRATED TOOLCARRIER
IT18FIT24FIT28F
KNUCKLEBOOM LOADER
2384D2484D559D579D
LANDFILL COMPACTOR
816B
LOAD HAUL DUMP
R1300R1300GR1300G IIR2900 XE
MATERIAL HANDLER
MH3022MH3024
MINING EXCAVATOR
5130B5230
MOBILE HYD POWER UNIT
345C349E L HVG
MOTOR GRADER
12H12H NA140H140H NA1616G16H16H NA16M16M31818M3
PIPELAYER
583R
RIPPER
10689
SOIL COMPACTOR
815815K
TELEHANDLER
TH220BTH350BTH355BTH360B
TRACK LOADER
931C II935C II939
TRACK SKIDDER
517527
TRACK-TYPE TRACTOR
D10ND4D5D5R LGPD5R XLD5R2D6HD6H XLD6H XRD6KD6K2D6K2 LGPD6K2 XLD6MD6ND6N LGPD6N XLD6RD6R IID6TD6T LGPD6T XLD6T XWD7D7HD7RD7R IID7R SERIESD8ND9N
TRUCK
793D
WHEEL DOZER
814814B814K854K
WHEEL LOADER
814K918F924924F924K930930K930M938938K938M966F966F II970F980G980G II980H988F II993993K994F994H994K995
WHEEL SCRAPER
623G
WHEEL SKIDDER
515518C525525B525C525D535B535C535D545545C545D555D
WHEELED EXCAVATOR
M320FM322CM322DM322D MHM322D2M322FM324D2 MHMH3024MH3026
WINCH
5656H57H5858L5959L59N
