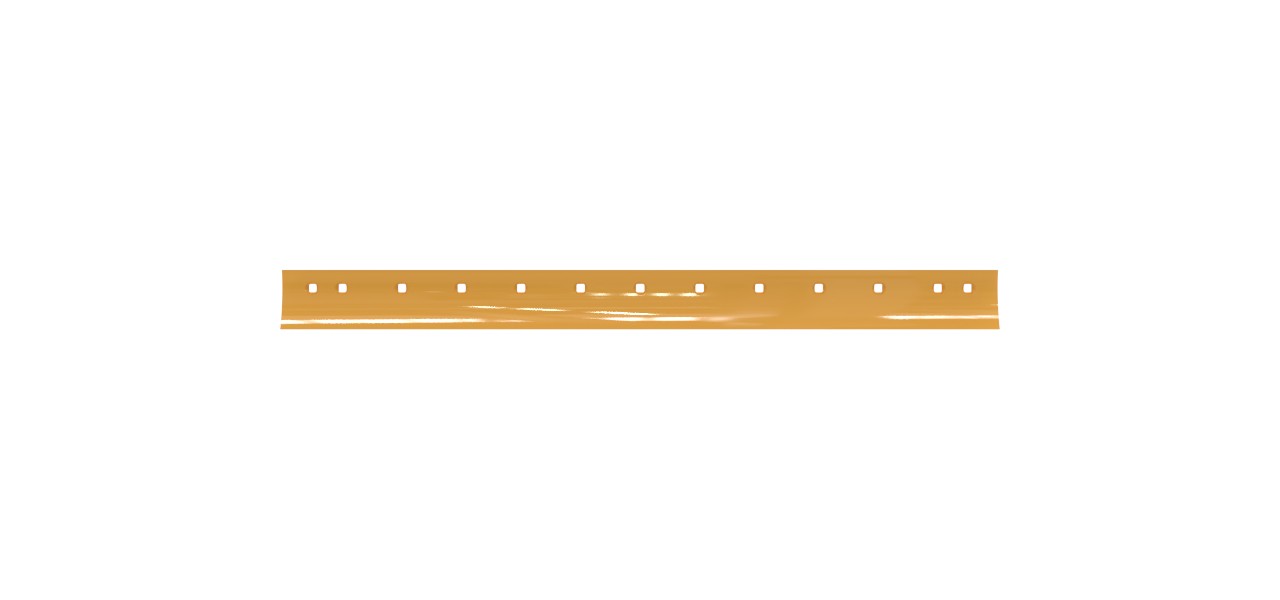

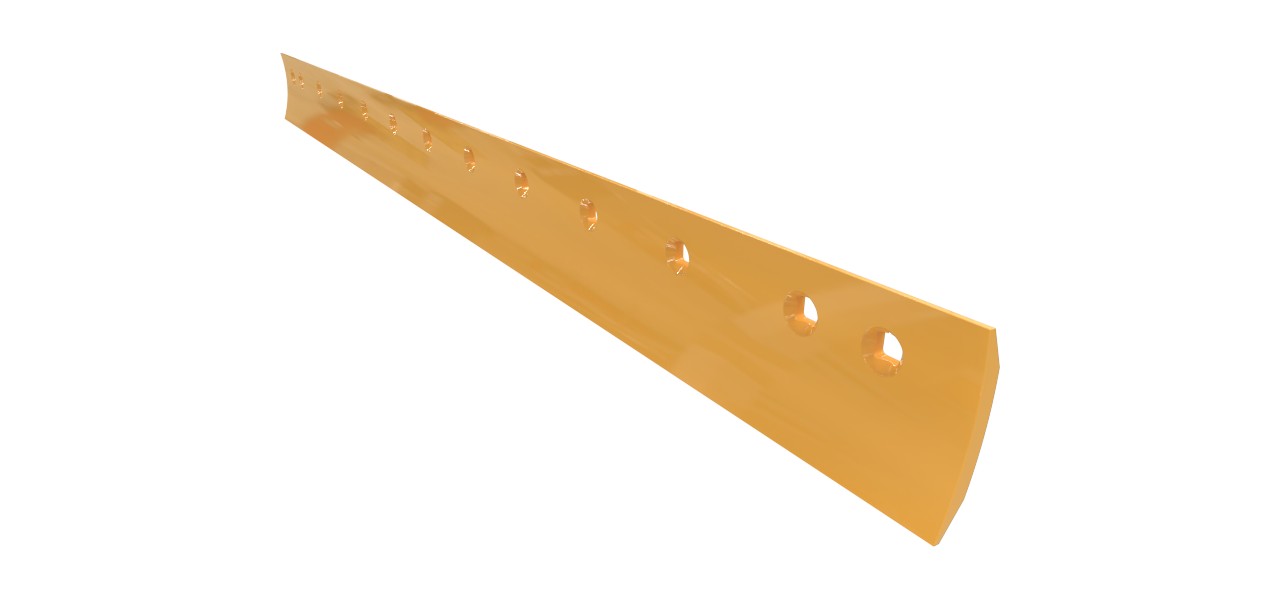

Motor Grader Cutting Edge

SKU: 9J-3657
1 piece
Categories
Sellers

Details

Offering unparalleled manufacturing precision, Cat® cutting edges protect the blade of your machines from damage. Our Ground Engaging Tools (GET) are designed specifically for the DNA of your Cat iron and deliver consistent, superior protection. Cat motor grader cutting edges provide the best balance of abrasion and impact resistance. Both Cat cutting edges and end bits are designed as a balanced system to move more material over a longer period with less downtime. This is accomplished by providing great strength for superior breakage resistance, and by offering maximum wear protection from both bottom and face wear on the cutting edge. Manufactured from steel with properties that maintain hardness for long wear life, our durable cutting edges make it possible for your machines to deliver the performance you demand. Protect your investment by always choosing genuine Cat Ground Engaging Tools. Attributes• Impact and abrasion resistance• High productivity in any applicationApplications • 12’ Blades • ¾” Bolt Holes • Developing roads Removing holes

Specifications

Part TypeEdge-cutting Boron Steel
Depth (cm)1.60
Width (cm)15.30
Width (in)6.0
Weight (kg)28.64
Volume (cm3)4,474.94
Thickness (in)0.626
Hole Spacing (in)6.0
Overall Length (in)71.906
End Hole Spacing (in)3.0

Compatible Models

MOTOR GRADER
120120 GC120K120M12K12M14140140 GC140K140M14L150160160K160M233 AWD
