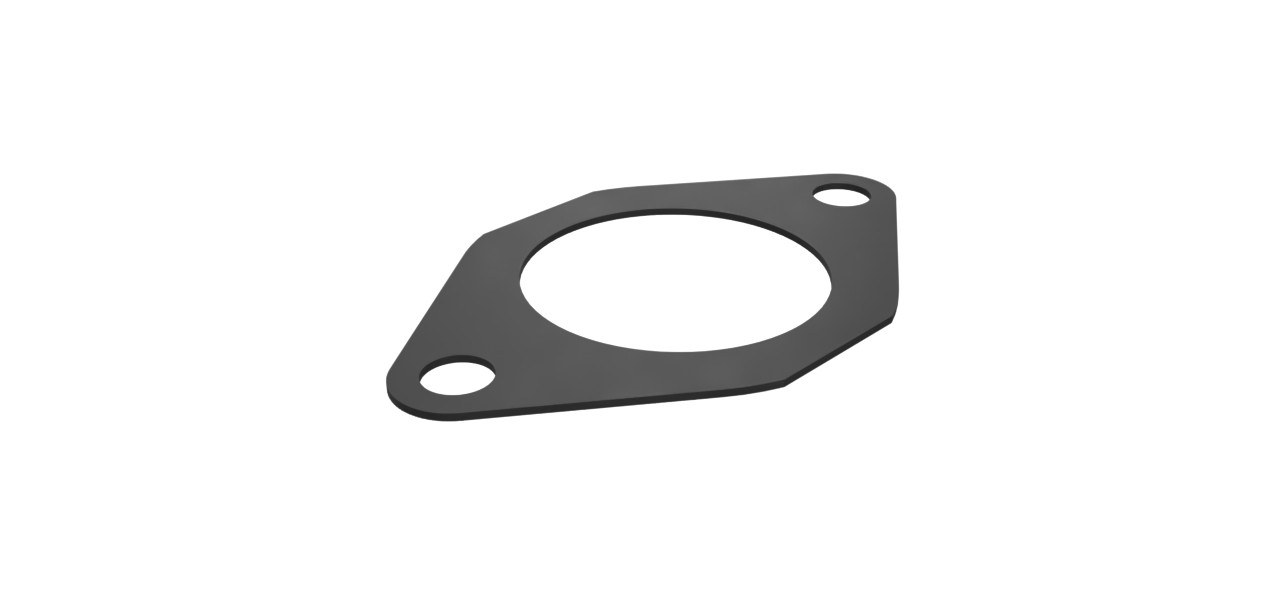

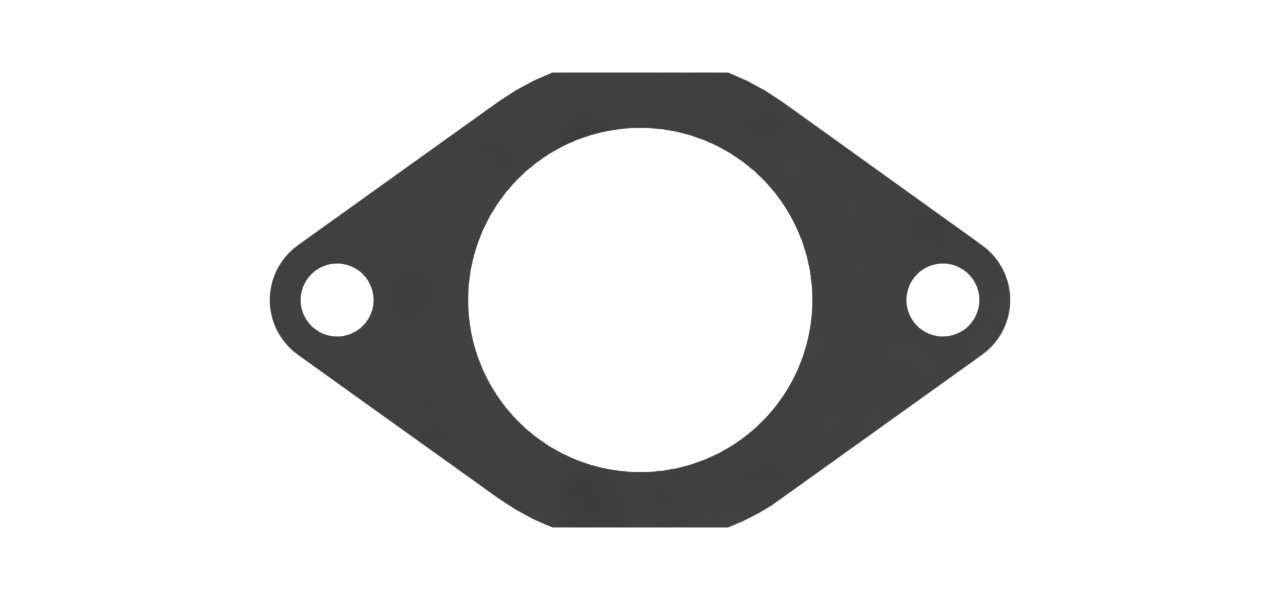

1.6mm Thick Flange Gasket

SKU: 9H-8136
1 piece
Categories
Sellers

Details

Gaskets use compression to provide a tight, leak free seal between mating parts. Cat gaskets are designed using the right combination of material and profile to deliver the performance you expect for your application.

Specifications

Part TypeGasket-ctp
Depth (cm)0.16
Width (cm)8.70
Weight (kg)0.01
Volume (cm3)19.63
Hole Size (mm)13.8 (2X)
Thickness (mm)1.6
Inside Diameter (mm)65.0
Outside Diameter (mm)92.0
Distance Between Flange Holes (mm)114.3

Compatible Models

MOTOR GRADER
120120B12E12F140140B14E
TRACK-TYPE TRACTOR
D9E
WHEEL LOADER
920930930R930T
