3.05mm Thick Thrust Washer

SKU: 9C-5040
1 piece
Categories
Sellers

Details

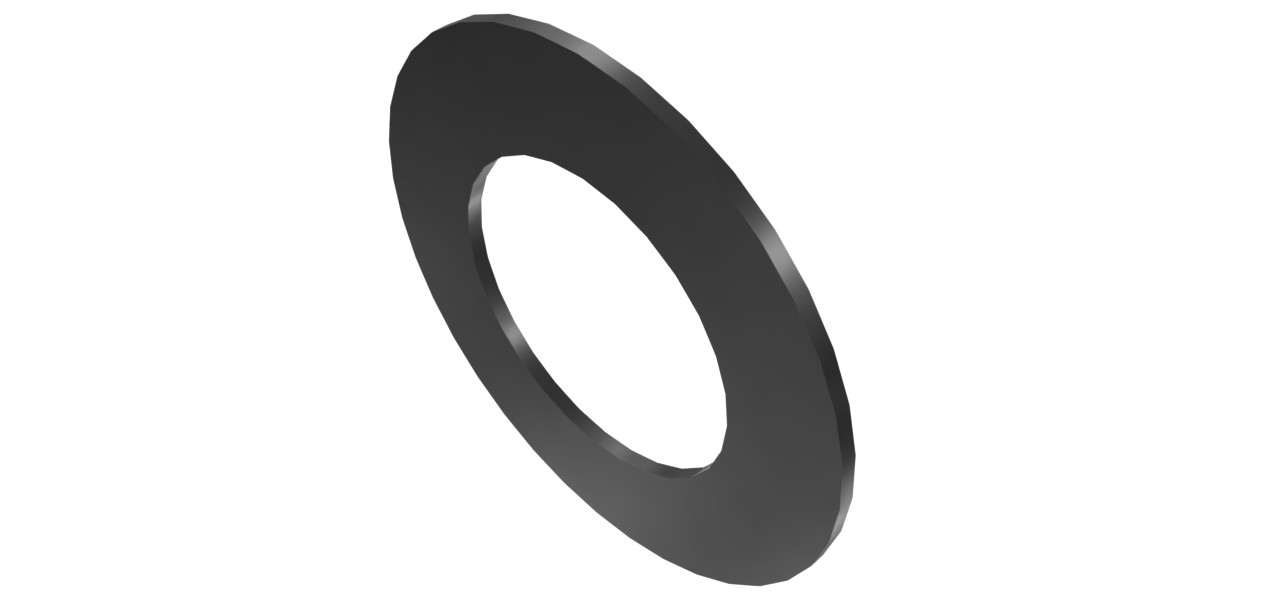

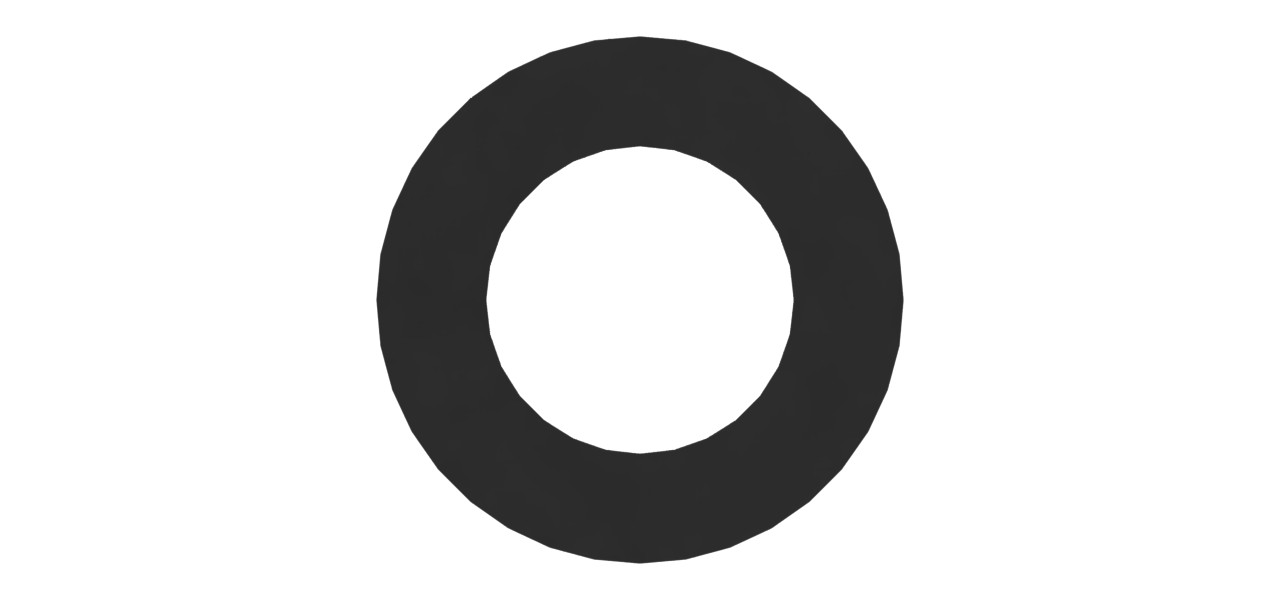

A Thrust Washer is a specialized part used for supporting and controlling the axial movement of the Bevel Gears within the Differential arrangement. It is positioned between the Bevel Gears and the Differential Housing. It provides a low-friction interface and acts as a barrier between the rotating Gears and the stationary housing, allowing for smooth axial movement while minimizing wear and friction. Attributes: • Handle the axial loads and thrust forces generated during the operation of the differential• Manufactured to precise specifications and are built for durability and reliabilityApplications:A Thrust Washer is used to provide axial support, control axial movement, and ensure proper gear engagement within the differential arrangement.

Specifications

Part TypeWasher
Depth (cm)1.00
Width (cm)15.50
Weight (kg)0.05
Volume (cm3)240.25
Thickness (mm)3.0
Inside Diameter (mm)65.0
Outside Diameter (mm)111.0

Compatible Models

INTEGRATED TOOLCARRIER
IT18FIT24FIT28FIT28G
WHEEL LOADER
918F924F924G924GZ924H924HZ928F928G928H928HZ930G930H
