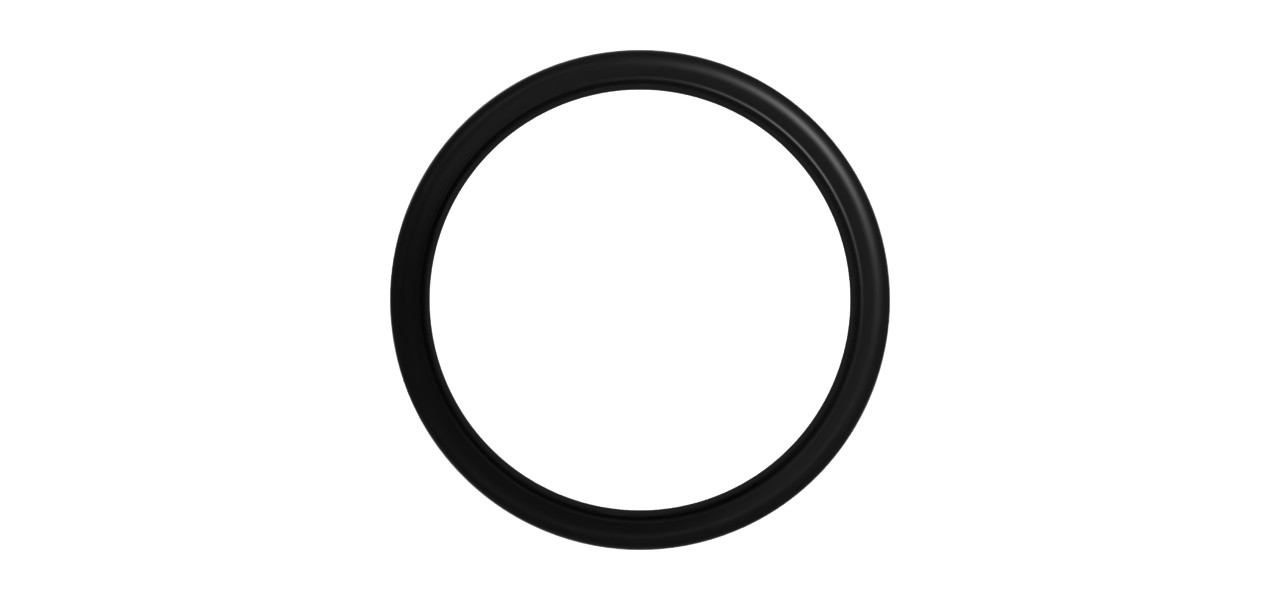

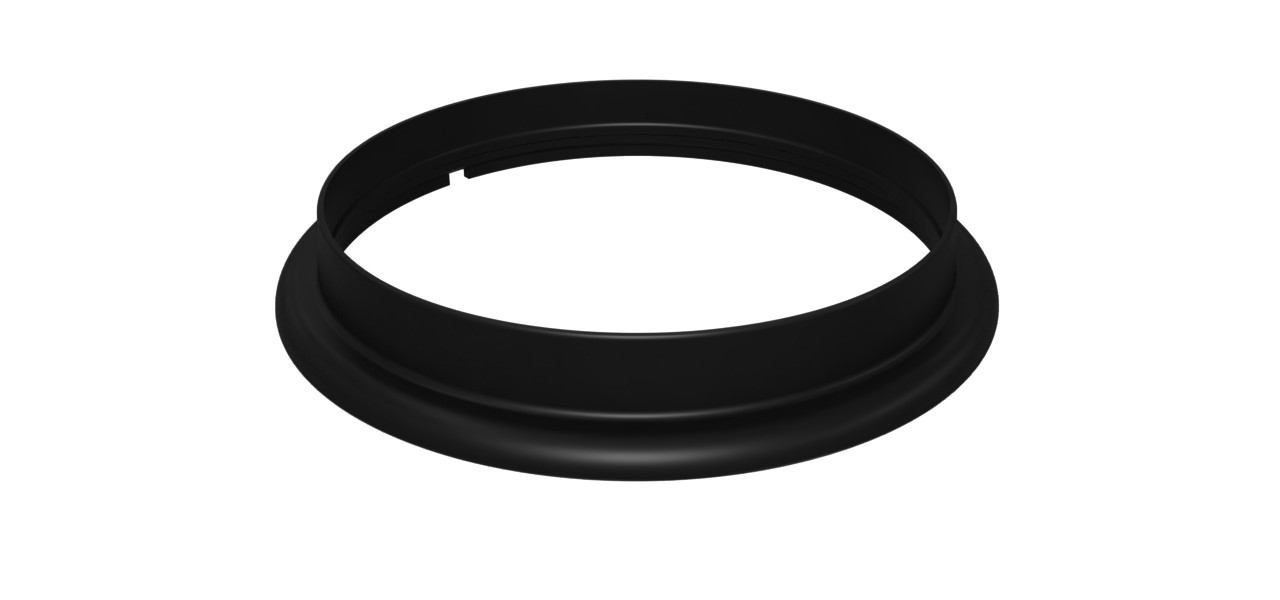

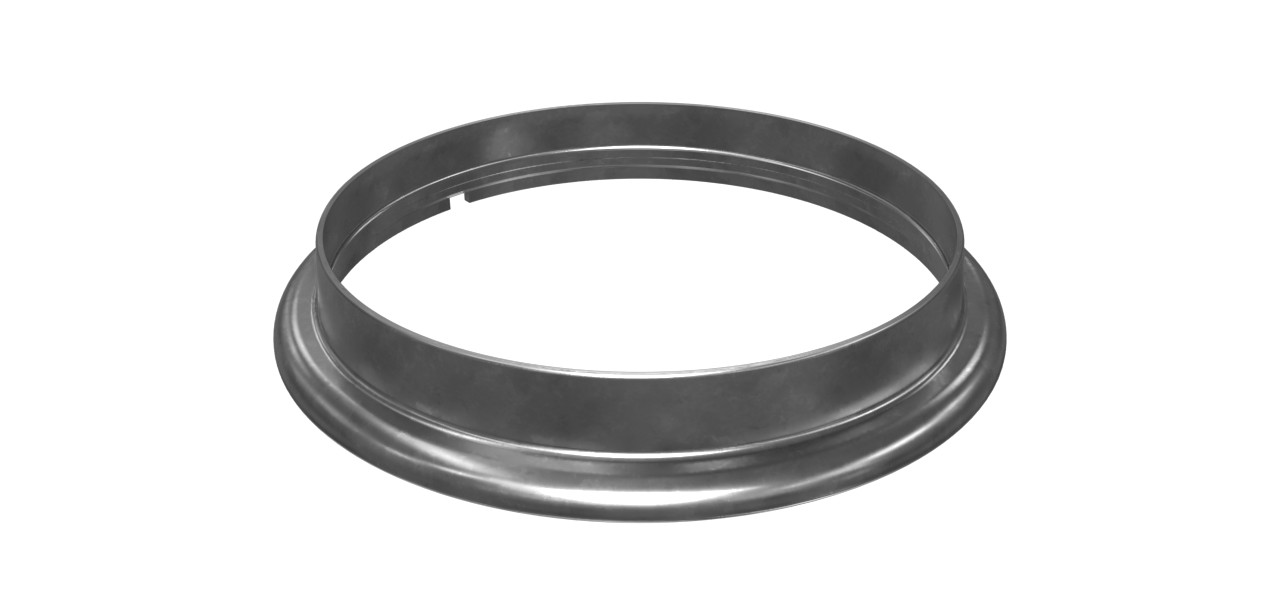

Flange Assembly

SKU: 8W-9566
1 piece
Categories
Sellers

Details

Replacement flange assembly used with multi-piece wheels on Cat machines. Attributes: • Steel flange assembly• Rim Type: 3-piece• Rim Diameter: 609.6 mm (24 in)• Inside Diameter: 590.1 mm (23.2 in)Application:Consult your owner's manual or contact your local Cat Dealer for more information.

Specifications

Part TypeFlange - Wheel
Depth (cm)11.00
Width (cm)70.00
Weight (kg)15.91
Volume (cm3)53,900.00
Inside Diameter (in)23.232

Compatible Models

ASPHALT PAVER
AP-600DAP-800CAP-800DAP600FBG-230BG-230DBG600D
INTEGRATED TOOLCARRIER
IT18BIT24FIT28IT28BIT28F
MOTOR GRADER
120120 GC120G120H120H ES120H NA120K120M12G12H12H ES12H NA12K12M130G135H135H NA140140 GC140G140H140H ES140H NA140K140M143H14G14H14H NA14L14M150160160G160H160H ES160H NA160K160M163H163H NA233 AWD
RIPPER SCARIFIER
12G130G140G
VIBRATORY COMPACTOR
CS-423E
WHEEL LOADER
924F926926E928F930R930T950B950E
