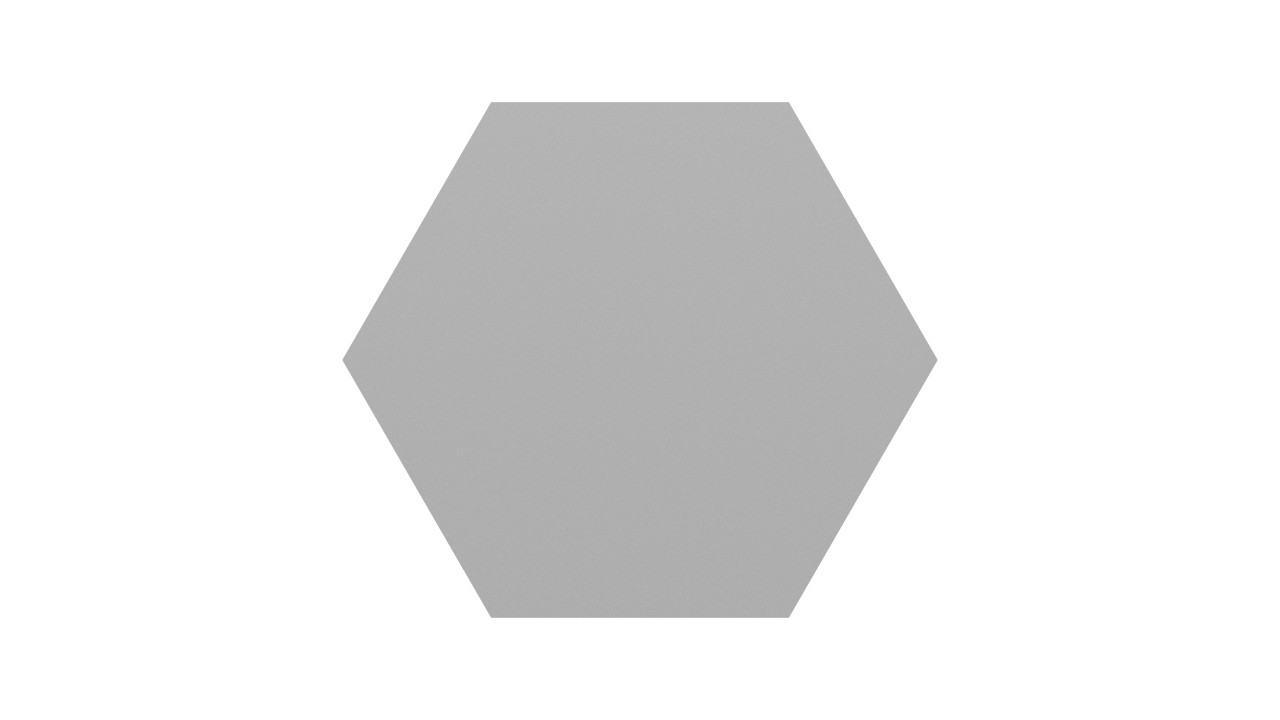

M12-1.75 x 180mm Hex Head Bolt

SKU: 8T-6991
1 piece
Categories
Sellers

Details

Cat® fastener parts are designed for specific applications based on size, strength, clamp load, and past performance. This is information other manufacturers do not have. They are selected to last until rebuild or the life of the machine. While it may seem as though non-Cat hardware and fasteners are suitable for your machine, no other company knows your equipment like we do.Hex head bolts/screws offer the most robust driving feature. Attributes: •Cat fasteners are manufactured to precise specifications and are built for durability, reliability, productivity •Strength & Quality – Fasteners meet or exceed ISO, ASTM, ASME & SAE requirements.•Cat bolts, nuts, and washers are designed to work together as a system for maximum clamping force.•Coatings that meet special requirements for different applications (RoHS compliant).Applications: Cat bolts and the matching hardened washers and nuts form a performance based system which produces consistently high clamp loads. You can trust Cat Fasteners to help you build it, maintain it, or fix it - for most machine and workshop applications throughout the world.

Specifications

Part TypeBolt
Depth (cm)1.80
Width (cm)1.80
Weight (kg)0.18
Volume (cm3)60.26
Bolt Length (mm)180.0
Grip Length (mm)144.0
Thread Size (mm)M12
Thread Size (dia x pitch) (mm)M12x1.75

Compatible Models

EXCAVATOR
365B365B II365B L538
FORWARDER
554
INDUSTRIAL ENGINE
3176C3196C-10C-12C-9C11C13C9
INTEGRATED TOOLCARRIER
IT62G
LANDFILL COMPACTOR
836G836H
OFF HIGHWAY TRUCK
793793D793F
PETROLEUM ENGINE
C11C13C9
RECLAIMER MIXER
RM-300
TRENCHER
T109T112T15T15BT315T6BT9T9B
TRUCK
793D793F793F CMD793F OEM793F XQ797797B
UNDERGROUND ART TRUCK
AD45AD45BAD55AD55BAD60AD63
WHEEL DOZER
834G834H
WHEEL LOADER
988G988H
