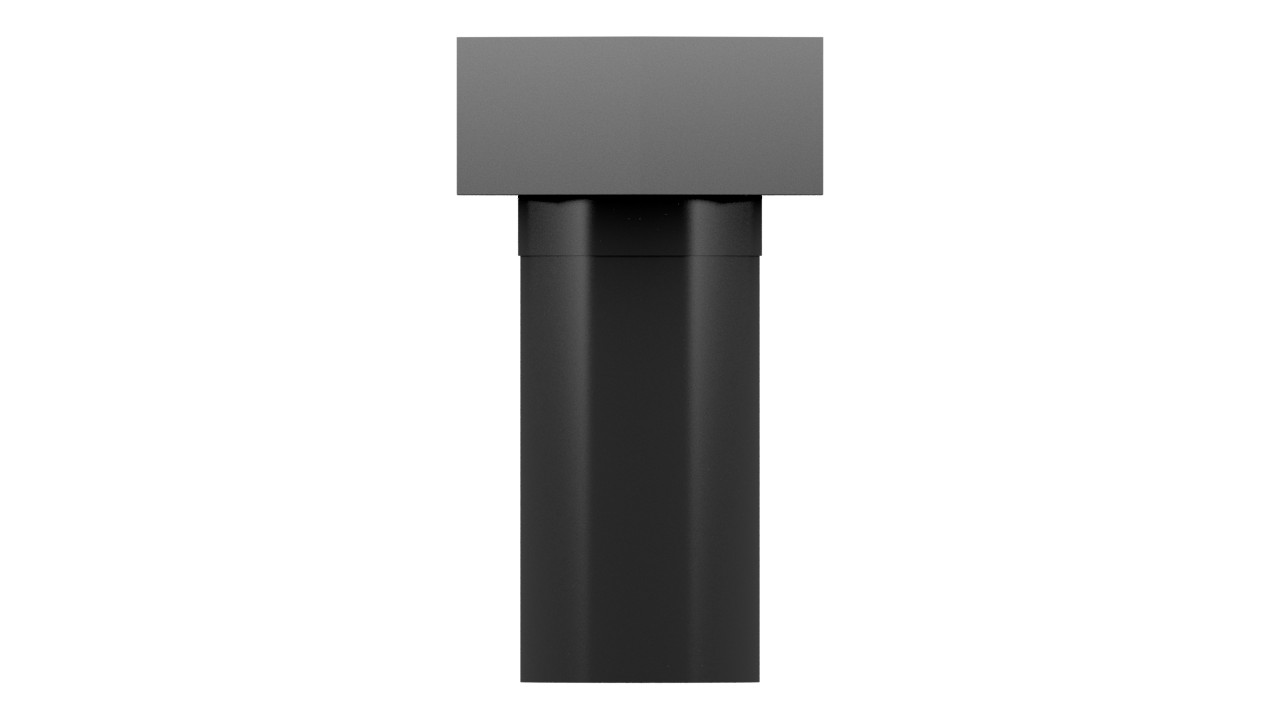

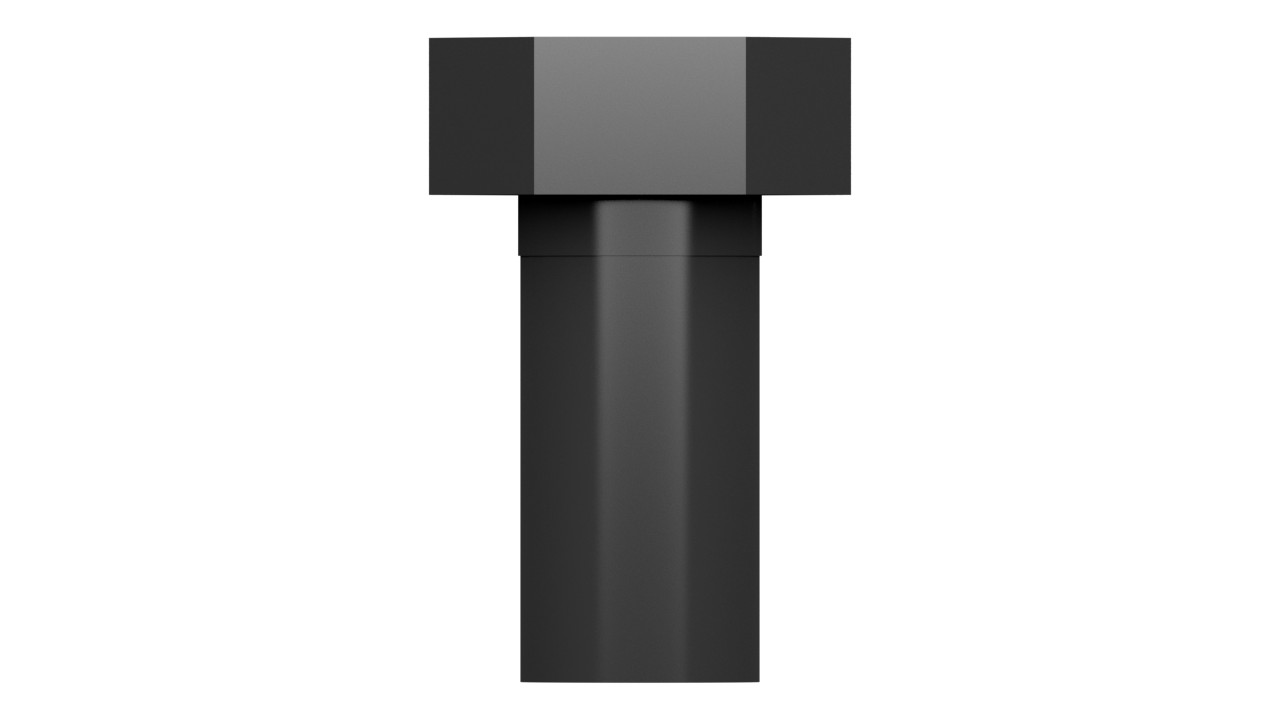

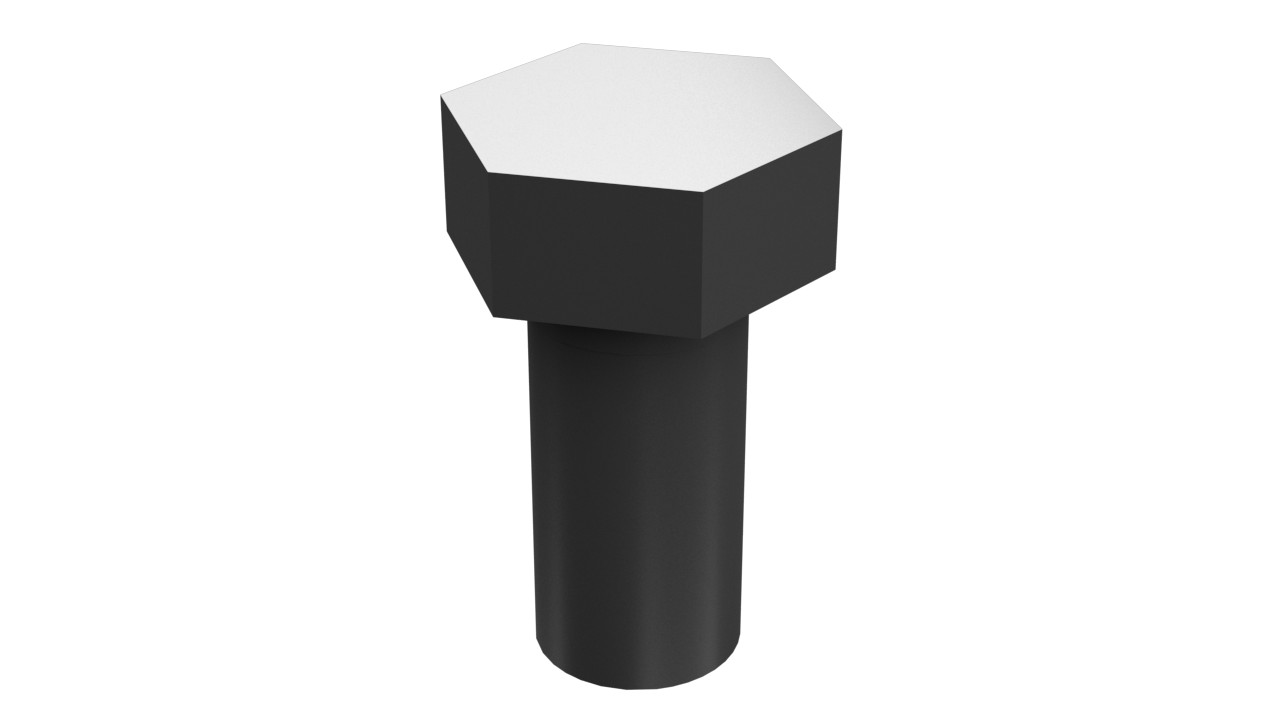

M20-2.5 x 40mm Hex Head Bolt
1 piece
Categories
Sellers
Details
Track bolts are used to connect the track shoes to the link assembly.
SKU: 8T-5460
Specifications
| Part Type | Bolt (zinc Flake) |
| Depth (cm) | 3.40 |
| Width (cm) | 3.40 |
| Weight (kg) | 0.16 |
| Volume (cm3) | 60.11 |
| Bolt Size (mm) | M20 |
| Bolt Length (mm) | 40.0 |
| Grip Length (mm) | 7.5 |
| Thread Size (mm) | M20 |
| Thread Size (dia x pitch) (mm) | M20x2.5 |
Compatible Models
| ARTICULATED TRUCK | 725725C725C2730735735 OEM740740 GC745 |
| ASPHALT COMPACTOR | CB10CB13CB15CB16CB7CB8 |
| ASPHALT FINISHER | MF41WD |
| ASPHALT PAVER | AP-1000EAP-1000FAP-1055BAP-1055DAP-1055EAP-1055FAP-300DAP-555EAP-600DAP-655CAP-655DAP-900BAP1000AP1055AP400AP455AP500AP500FAP555AP555FAP600AP600FAP655AP655FAP655F LBG-2255CBG-240CBG-2455CBG-2455DBG1000EBG1055EBG555EBG655DPE636SE47 |
| ASPHALT SCREED | AS2302CAS3251CAS3301CSE47 VSE50 VSE60 VSE60 V XWSE60 VT XWSE60VT XW |
| BLADE | 834G836G |
| BUCKET | BUCKET |
| COLD PLANER | PM-465PM310PM312PM313PM620PM622PM820PM822PM825 |
| COMPACT TRACK LOADER | 279C279C2289C289C2299C299D299D XHP |
| COMPACT WHEEL LOADER | 904B910E910F910G |
| COMPACTOR | CB10CB13CB15CB16CB7CB8CCS7CCS9CD10CD8 |
| CONTRACTOR GRAPPLE | G120G126 |
| CRUSHER | P325P335VHC-40VHC-50 |
| DEMOLITION AND SORTING | GRAPPLE |
| DEMOLITION GRAPPLE | G332G345 |
| EJECTOR TRUCK | 730740 |
| ELECTRIC ROPE SHOVEL | 74957495 HF |
| ENGINE - MACHINE | C32 |
| EXCAVATOR | 311-A311B312-A312B312B L312C312D312D L313D2313D2 LGP315-A315-A L315B315B FM L315B L315C315D L316E L316F L317 N317-A317-A N317B L317B LN318B318B N318C319C319D319D L319D LN320320 GC320 L320-A320-A L320-A N320-A S320B320B FM LL320B L320B LL320B LU320B N320B S320B U320C320C FM320D320D FM320D GC320D L320D LN320D LRR320D RR320D2320D2 FM320D2 L320E L320N321B322 L322 LN322-A322-A L322-A LN322-A N322B322B L322B LN322C322C FM322N323323D323D L323D LN323D S323D SA323F OEM324D324D FM324D L324D LN324E L325 L325 LN325-A325-A FM L325-A L325-A LN325B325B L325B LN325C325C FM325C L325D325D FM325D L325D MH326326D2 L328D LCR329D329D L329D LN329D2329D2 L329E L330330 GC330B330B L330B LN330C FM330C L330C MH330D330D L330D MH330F330GC336336 GC336D336D L336D LN336D2336D2 L336E L336E LH336E LN340345 GC345B345B II345B II MH345B L345C345C L345C MH345D349D2349E349E L349E L VG350-A350-A L365B365B L374375-A375-A L548E140M315FM317FM318M318FM320M320GCM325D L MHM325D MHMH3024MH3040 |
| FELLING HEAD | HFW232SH-58 |
| FORWARDER | 554564574574B |
| GENERATOR SET | 345635083508B35123512B35163516BC175-16CG137-12 |
| GRAPPLE | G136 |
| GRAPPLE-CONTRACTOR | G120BG125BG130B |
| GRAPPLE-DEM/SORT | G325BG330VRG-40/2 |
| GRAPPLE-MECHANICAL | VPG-45VPG-55 |
| GRAPPLE-ORANGE PEEL | GSH15BGSH20BGSH9B |
| HAMMER | 140160H140CSH140DSH140SH160CSH160DSH160SH180DS |
| HYDRAULIC SHOVEL | 6015B60406060 |
| INDUSTRIAL ENGINE | C4.4 |
| INTEGRATED TOOLCARRIER | IT28GIT38FIT38GIT38G IIIT38H |
| KNUCKLEBOOM LOADER | 2384C2384D2484C2484D559C559D579C579D |
| LANDFILL COMPACTOR | 816F816F II836G836H |
| LOAD HAUL DUMP | R1700 XE |
| LOCOMOTIVE ENGINE | 3512EC175-16 |
| LOG LOADR FORST MACH | 558 |
| LOGGER | 322C |
| MATERIAL HANDLER | M325D L MHM325D MHMH3022MH3024MH3032MH3040 |
| MINING EXCAVATOR | 5230 |
| MOBILE HYD POWER UNIT | 323D L323F OEM325D325D L329D L329E330D2330F330FMHPU336D L336E336F345C L349D L352FMHPU |
| MOTOR GRADER | 120120 GC14140140 GC14M-314M31501616016GC16M16M31818M3404F-22 |
| MULTI PROCESSOR | MP15MP20MP30MP324VT30VT40VT50 |
| MULTI PROCESSOR JAW | MP318MP324 |
| MULTI TERRAIN LOADER | 277C277C2287C287C2297C |
| OFF HIGHWAY TRUCK | 775777777G793793F794 AC796 AC798798 ACD10R |
| PAVING COMPACTOR | C13 MARINEMG630 |
| PIPELAYER | 561M583TPL72PL83PL87 |
| PNEUMATIC COMPACTOR | CW-14PF-290BPS-150BPS-150CPS-200BPS-360BPS-360C |
| POWER MODULE | XQC1200 OEM POWER |
| PULVERIZER | P120P130P224P225P232P235P324VHP-40VHP-50VPC-50 |
| QUICK COUPLER | PIN GRAB QUICK COUPLER QUICK COUP |
| QUICK COUPLER-DWL | CW-20CW-20SCW-30CW-30SCW-40CW-40S |
| QUICK COUPLER-MWL HPL | PW2503/7 |
| RECLAIMER MIXER | RM800 |
| ROAD RECLAIMER | RM600RM800 |
| ROTARY CUTTER | RC10RC15 |
| ROTARY DRILL | MD6250MD6310MD6380 |
| ROTARY MIXER | RM800 |
| ROTARY/TRACK DRILLS | MD6240MD6420 |
| SHEAR | S3035 |
| SHEAR-DEMOLITION/SCRAP | S3035S320S320BS325S325BS340VHS-30VHS-40VHS-50 |
| SHEAR-MECHANICAL | S128VPS-45 |
| SHOVEL | 6040 |
| SHOVEL LOGGER | 345C |
| SKID STEER LOADER | 246C256C262C262C2272C272D272D XHP |
| SOIL COMPACTOR | CP11CP12CP12 GCCP13CP13 GCCP14CP44BCP56BCP68BCP7CS10CS10 GCCS11CS11 GCCS12CS12 GCCS13CS13 GCCS14CS44BCS54BCS56BCS64BCS66BCS68B |
| SPL EXCAVATOR BASED SOLN | OEM-PM |
| TELEHANDLER | TH210TH215 |
| THUMB | HYDRAULIC |
| TRACK FELLER BUNCHER | 109011901190T1290T1390222902390239124912590511521521B522522B532541551552TK1051TK711TK721TK722TK732TK741TK751TK752 |
| TRACK LOADER | 939C943963963C963D963K973973C973D973K |
| TRACK-TYPE TRACTOR | 30/30D10D10TD10T2D11D11TD4D4C IIID5D5C IIID5MD5R LGPD5R XLD5R2D6D6 XED6GCD6KD6K2D6K2 LGPD6K2 XLD6ND6N LGPD6N XLD6RD6R IID6R IIID6R LGPD6R STDD6R XLD6TD6T LGPD6T LGPPATD6T XLD6T XL PAT DEUCED6T XWD6T XW PATD6XED7D7ED7E LGPD7RD7R IID7R LGPD7R SERIESD7R XRD8D8 GCD8GCD8RD8R IID8TD9D9 GCD9RD9T |
| TRUCK | 773F773G773G LRC773G OEM775F775G775G LRC775G OEM777G789D793F793F CMD793F OEM793F XQ794 AC795F AC795F XQ |
| UNDERCARRIAGE | OEMS |
| UNDERGROUND ART TRUCK | AD30AD45AD45BAD55AD55BAD60AD63 |
| VIBRATORY COMPACTOR | CB-335DCB-335ECB-434DCB-44BCB-534DCB-54CB-544CB-545CB-54BCB-564DCB-634DCB-64CB-64BCB-66BCB-68BCB10CB46BCB7CC-34CD-44BCD-54CD-54BCP-433CCP-433ECP-44CP-44BCP-533CCP-533DCP-533ECP-54CP-54BCP-56CP-563CCP-563DCP-563ECP-56BCP-573ECP-64CP-663ECP-68BCP-74CP-76CP11 GCCP12CP12 GCCP44BCP54BCP56BCP68BCP7CS-423ECS-431CCS-433CCS-433ECS-44CS-44BCS-531CCS-531DCS-533CCS-533DCS-533ECS-54CS-54BCS-56CS-563CCS-563DCS-563ECS-56BCS-573CCS-573DCS-573ECS-583CCS-583DCS-583ECS-64CS-64BCS-663ECS-66BCS-683ECS-68BCS-74CS-76CS10 GCCS11 GCCS12CS14CS44BCS512 GCCS54BCS56BCS68BCS7CVP110CVP75VVP25VVP45 |
| WHEEL DOZER | 824824G824G II824H824K834834G834H834K844854G854K |
| WHEEL HARVESTER | 550B560B570B |
| WHEEL LOADER | 924924K926928H930930K930M936F938938F938G938G II938H938K938M950950G950G II950H950K950L950M950M Z962962G962G II962H962K962L962M962M Z966966 GC966G966G II966H966K966K XE966L966M966M XE972972G972G II972H972K972L972M972M XE972XE980G980G II980H980K980L980M982M986986H986K988G988GC988H990990 II990H992992G |
| WHEEL SKIDDER | 525B525C525D535B535C535D545545C545D555D |
| WHEEL TRACTOR | 651 |
| WHEEL TRACTOR-SCRAPER | 613G651657 |
| WHEELED EXCAVATOR | M313-07M313CM313DM314M314-07M314FM315M315CM315DM315D2M315GCM316M316CM316DM316FM317M317D2M318M318CM318C MHM318DM318D MHM318FM319M320M320D2M320FM320GCM322M322CM322DM322D MHM322D2M322D2 MHM322FM324D2 MHM325BM325C MHM330DMH3024MH3026MH3040W330BW345B IIW345C MH |
| WORK TOOL | RC20RC30 MISC |
