Product gallery 1

SEAL

SKU: 8T-1788
1 piece
Categories
Sellers

Details

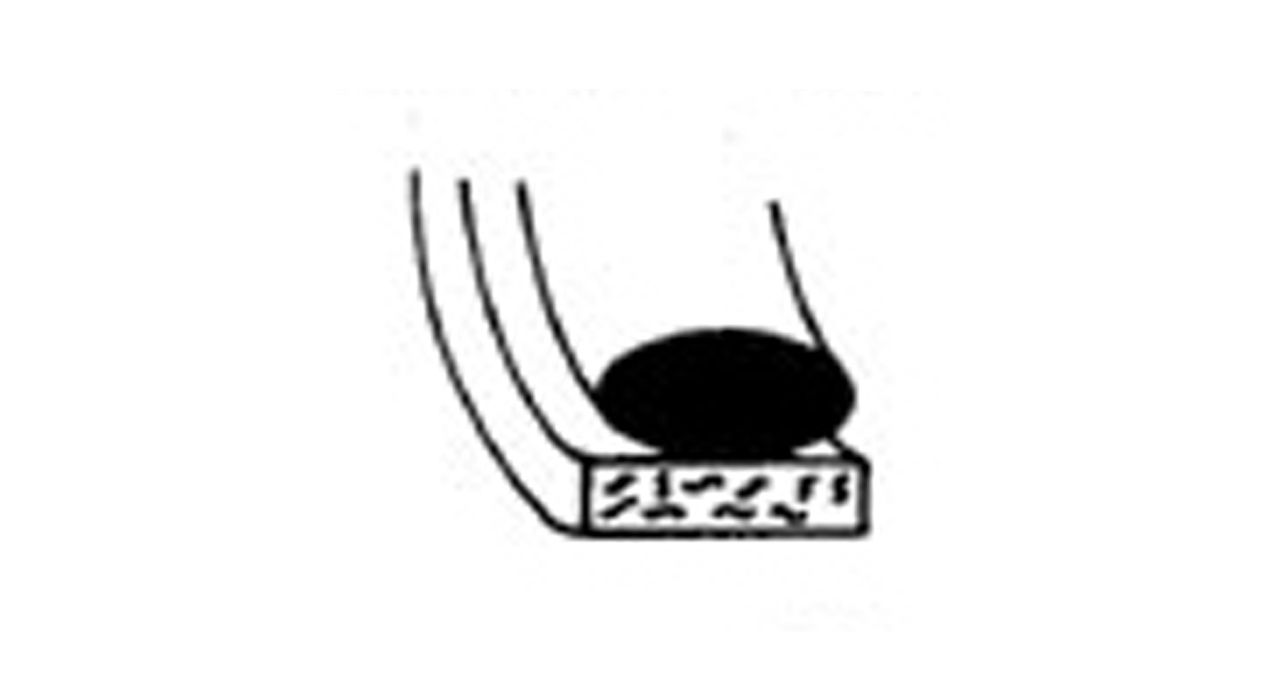

A two-piece seal, consisting of a piston ring and an expander, which prevents oil transfer between the rod end of the cylinder and the cap end. The piston seal is usually made of Teflon, with nylon available for pressure greater than 3000 psi (20,670 kpa). The various shaped expanders are nitrile.

Specifications

Part TypeSeal-piston
Depth (cm)1.00
Width (cm)23.00
Weight (kg)0.11
Volume (cm3)529.00
Bore Diameter (mm)158.75
Groove Width - A (+/- 0.0508 mm) (mm)15.98
Groove Diameter - B (+/- 0.0762 mm) (mm)135.76

Compatible Models

TRACK-TYPE TRACTOR
D10ND10RD10T
TRUCK
797
WHEEL DOZER
824G II824H
WHEEL LOADER
950950H950L950M Z962962H962L962M Z966H966K966K XE966M966M XE972H972K972M972M XE980C980F980F II980G980G II980H
WHEEL SCRAPER
633E
