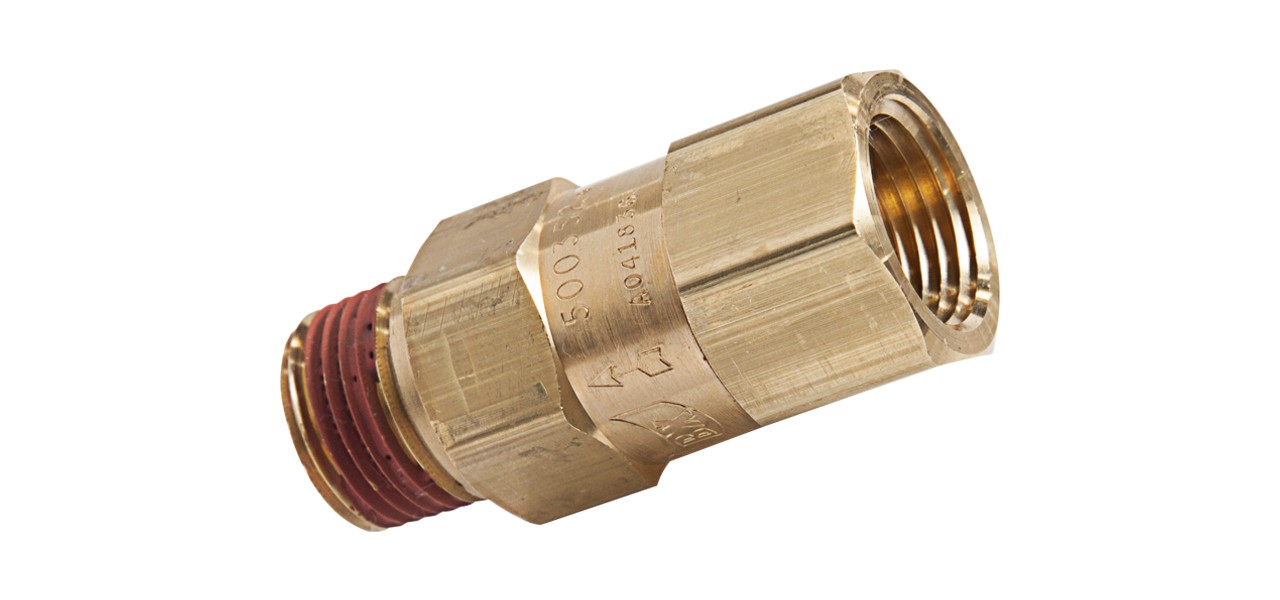

Brake Control Check Valve

SKU: 8M-3368
1 piece
Categories
Sellers

Details

Cat check valves provide a uni-directional fluid flow and prevent back flow. Attributes: • Prevents backflow• Hex size: 25.4 (2x)• Inlet and Outlet threads: 1/2-14 NPT• Inlet and Outlet genders: female• Maintains desired pressureApplications:Used as needed in various systems of heavy-duty equipment, and are application specific. Consult your owner's manual or contact your local Cat Dealer for more information.

Specifications

Part TypeValve-check
Depth (cm)6.00
Width (cm)7.00
Length (mm)61.0
Weight (kg)0.24
Volume (cm3)315.00
Hex Size (mm)25.4

Compatible Models

MINING EXCAVATOR
51305130B
MOTOR GRADER
120G120H120H ES120H NA120K12G12H12H ES12H NA12K130G135H NA140G140H140H ES140H NA140K140M143H14G14H NA14M160G160H160H ES160H NA160K160M163H NA16G16H NA2
QUARRY TRUCK
771C771D775B775D
ROAD RECLAIMER
RR-250B
SOIL COMPACTOR
815B
SOIL STABILIZER
SS-250B
TRACTOR
768B768C772772B776776B776C776D784B784C
TRUCK
69D769769B769C769D773773B773D773E775D775E777777B777C777D785785B785C785D789789B789C793D795F AC
WHEEL LOADER
966D966E966F966F II
WHEEL TRACTOR
613613B613C613C II615615C615C II621621G623623G627627G631C631G633C637637G641641B651651B657657B657G
