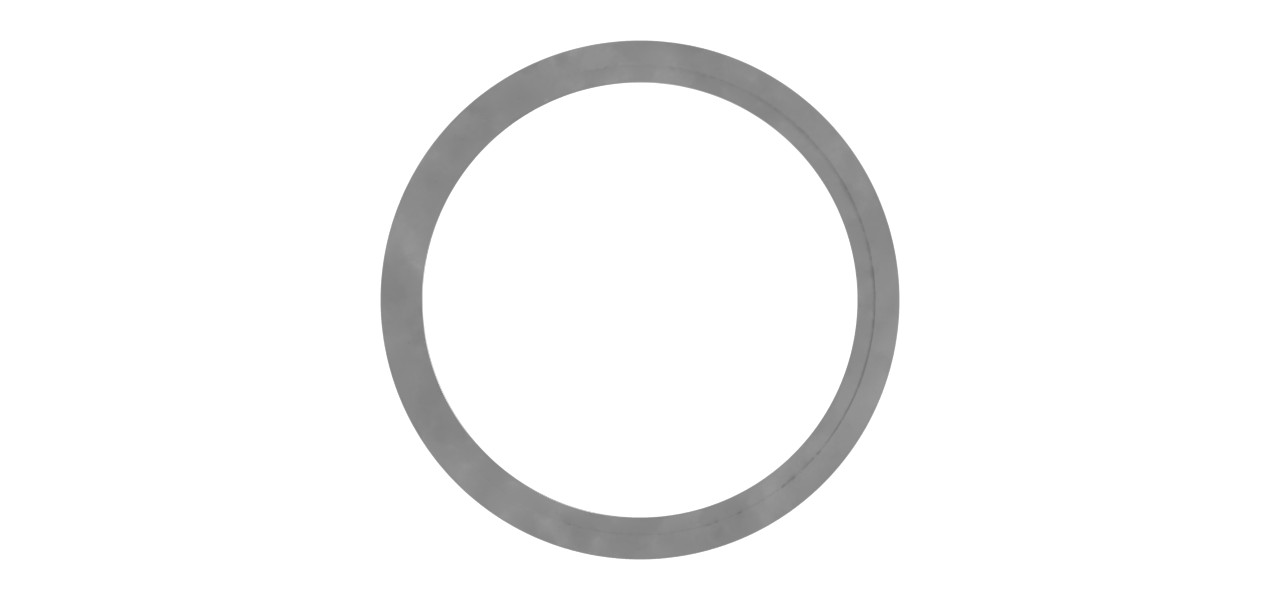

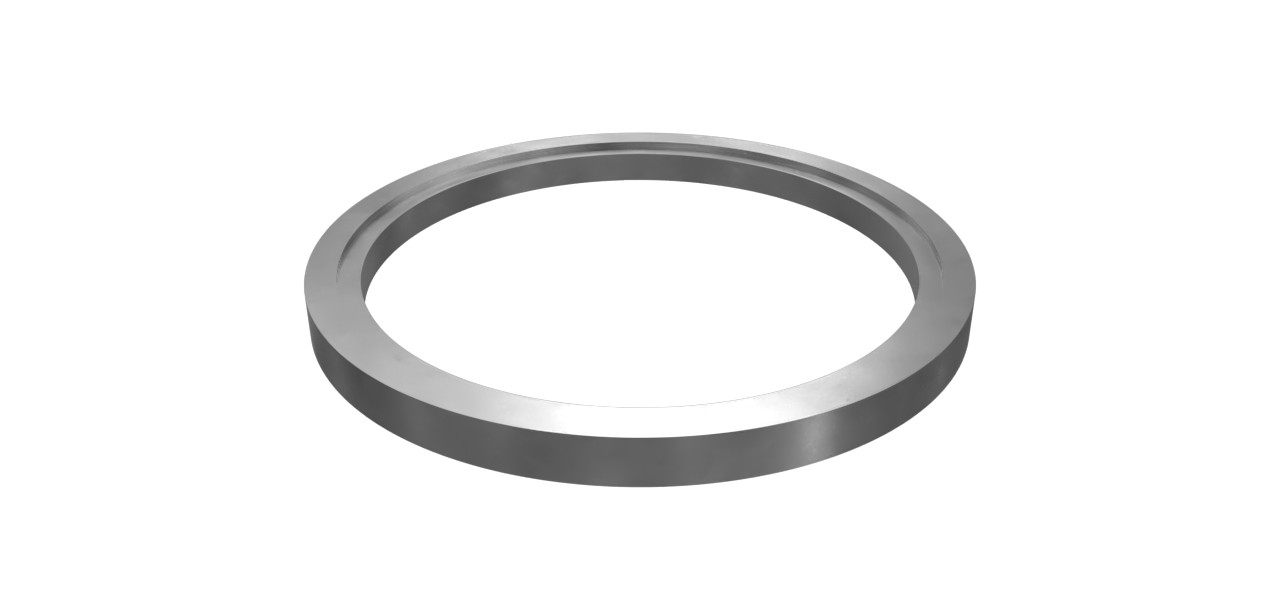

Cylinder Expander Seal

SKU: 8J-6213
1 piece
Categories
Sellers

Details

A two-piece seal, consisting of a piston ring and an expander, which prevents oil transfer between the rod end of the cylinder and the cap end. The piston seal is usually made of Teflon, with nylon available for pressure greater than 3000 psi (20,670 kpa). The various shaped expanders are nitrile.

Specifications

Part TypeSeal Assy
Depth (cm)0.50
Width (cm)6.60
Weight (kg)0.01
Volume (cm3)21.78
Bore Diameter (mm)63.5
Groove Width - A (+/- 0.0508 mm) (mm)4.88
Groove Diameter - B (+/- 0.0762 mm) (mm)53.98

Compatible Models

ASPHALT PAVER
AP-1000BAP-1050BAP-650BAP-800CBG-225CBG-230BG-245CBG-260C
COMPACT WHEEL LOADER
910G914G914G2
INTEGRATED TOOLCARRIER
IT14GIT14G2
MOTOR GRADER
120G12G130G140140G14G14H14H NA160G
RIPPER SCARIFIER
12G130G140G
