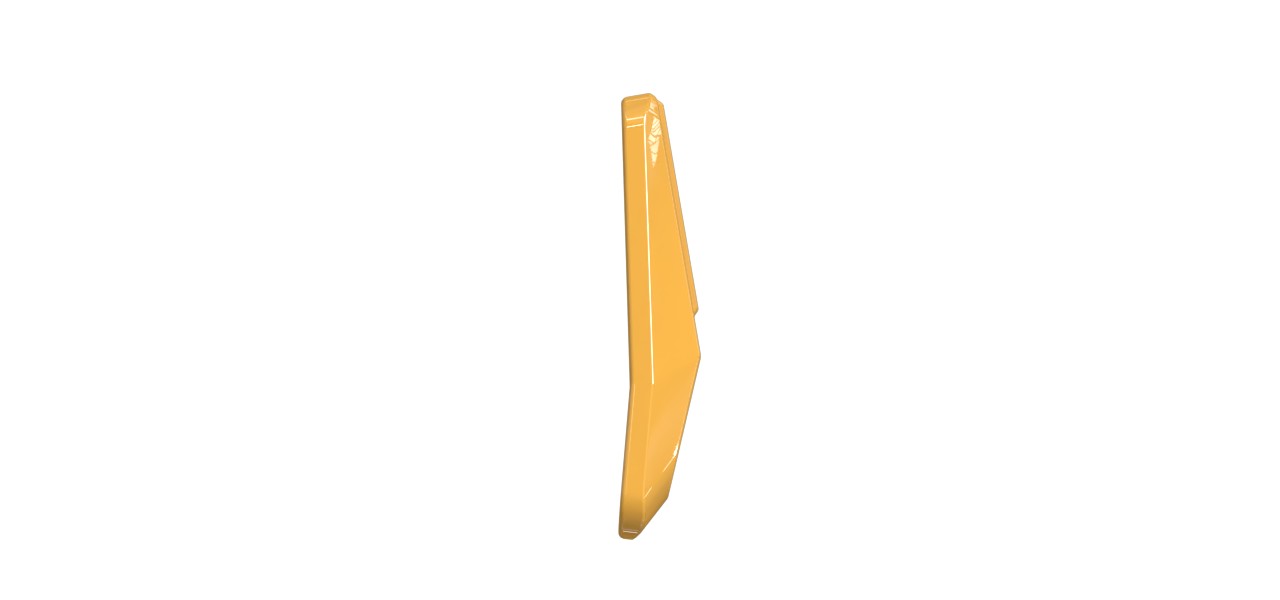

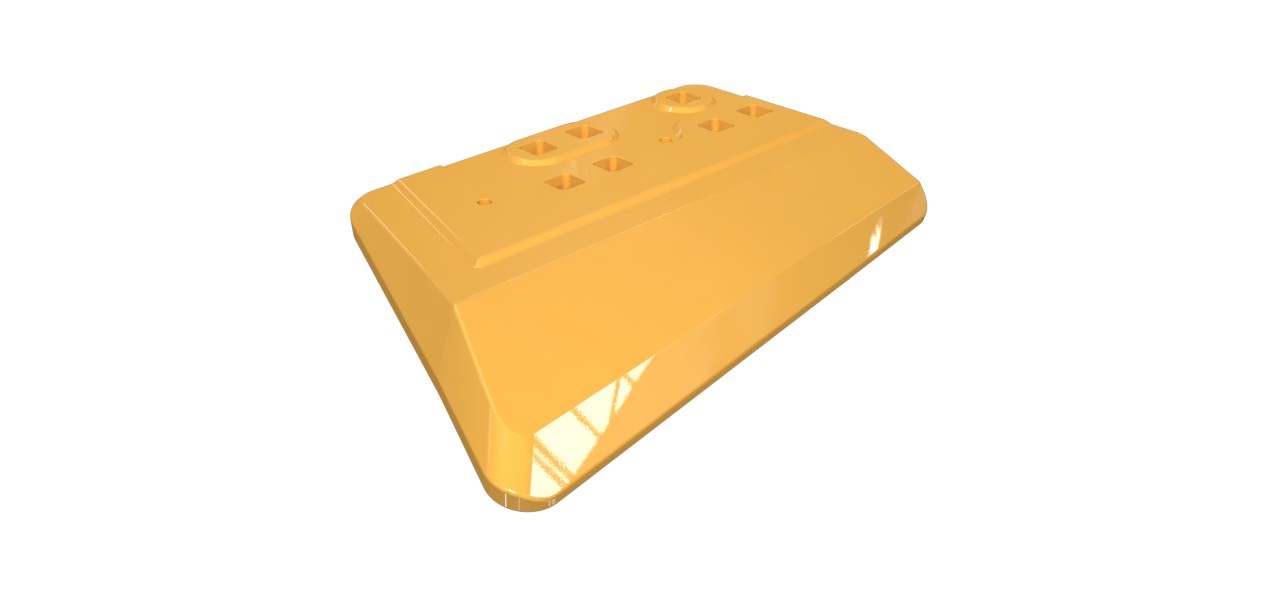

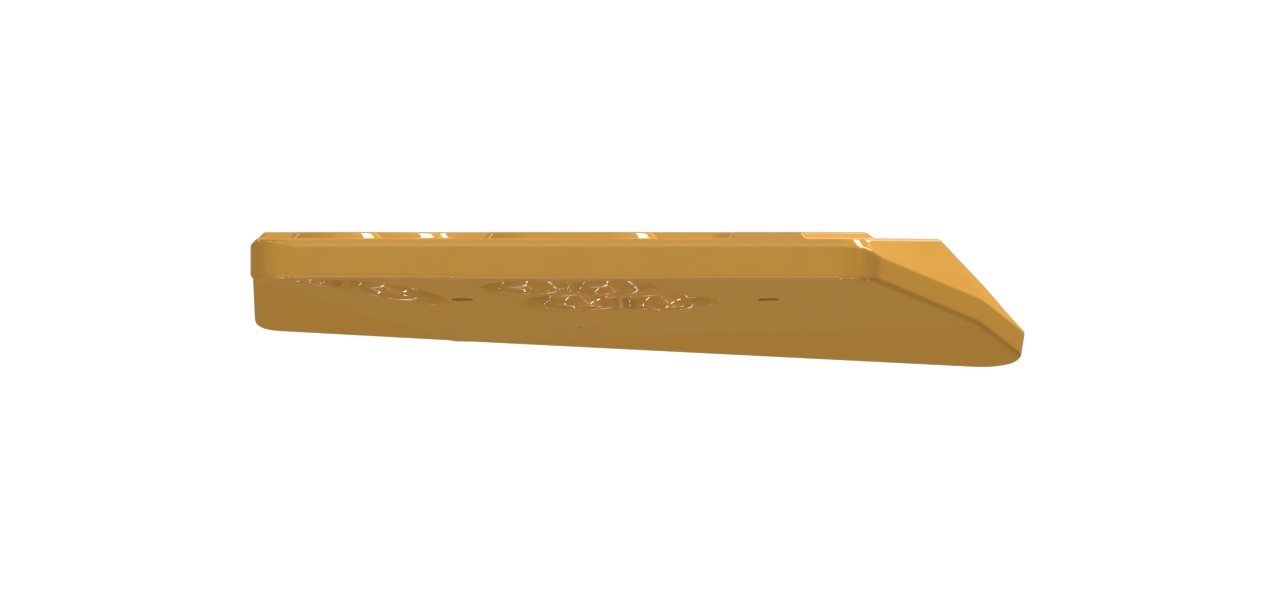

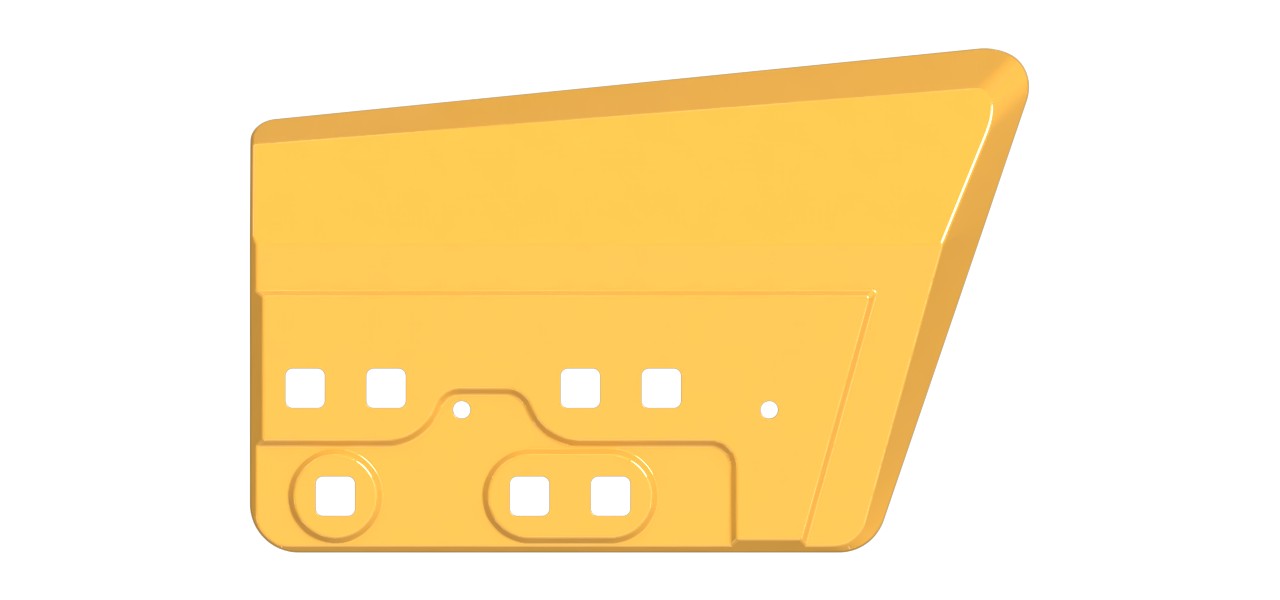

Dozer End Bit

SKU: 8E-4542
1 piece
Categories
Sellers

Details

Offering unparalleled manufacturing precision, Cat® extended wear life end bits protect the blade of your machines from damage. Our Ground Engaging Tools (G.E.T) are designed specifically for the DNA of your Cat iron and deliver consistent, superior protection.Cat extended wear life end bits provide both an increased impact resistances and offer 25% more usable wear material over general duty end bits. The contoured design of the end bits aides in rolling material towards the center of the blade. This allows for greater load retention and capacity, which greatly increases the productivity of the machine. extended wear life end bits have a sharpened profile and sit below the leading edge of the cutting edge to provide superior blade control.Forged from steel with properties that maintain hardness for long wear life, our durable end bits make it possible for your machines to deliver the performance you demand. Protect your investment by always choosing genuine Cat Ground Engaging Tools. Attributes: • High impact and abrasion resistance• 25% more usable wear materialApplications:• Production dozing in caliche and well shot rock• Overburden both well and poorly shot rockCompatible Models:D10T2 D10T 844H D10R

Specifications

Part TypeBit-end Lh
Depth (cm)55.88
Width (cm)78.74
Width (in)18.425
Weight (kg)86.36
Volume (cm3)491,743.02
Thickness (in)1.772
Overall Length (in)28.425
Lower Hole Spacing (in)2.953
Upper Hole Spacing (in)2.953

Compatible Models

BULLDOZER
10SU10U
TRACK-TYPE TRACTOR
D10D10ND10RD10TD10T2
WHEEL DOZER
854G
