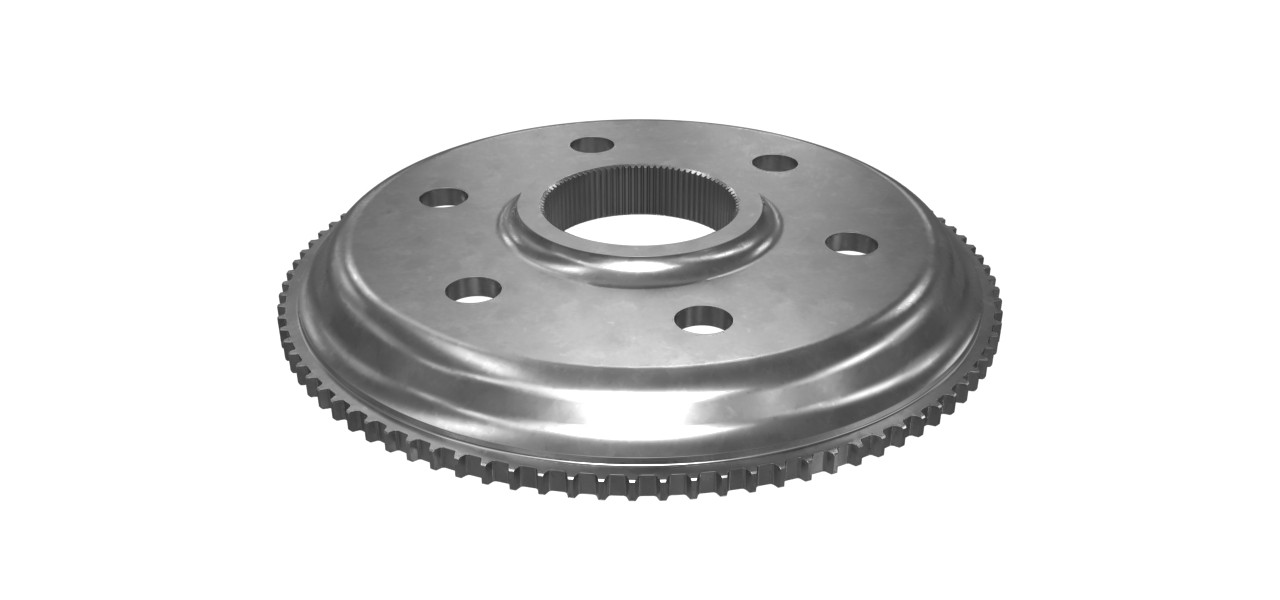

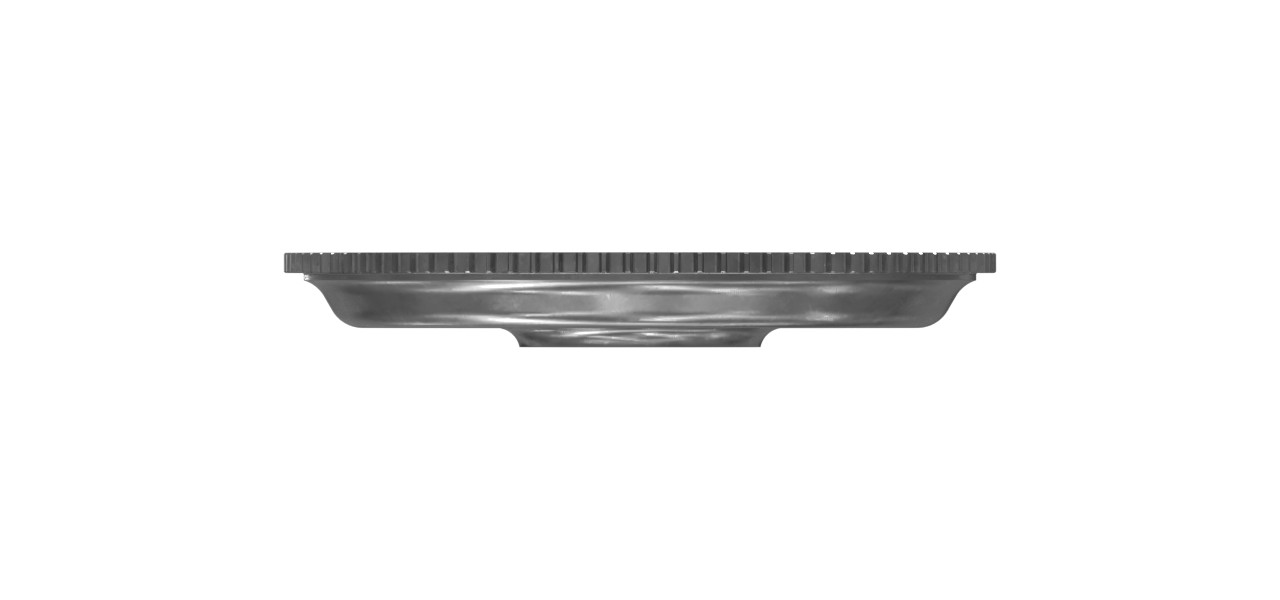

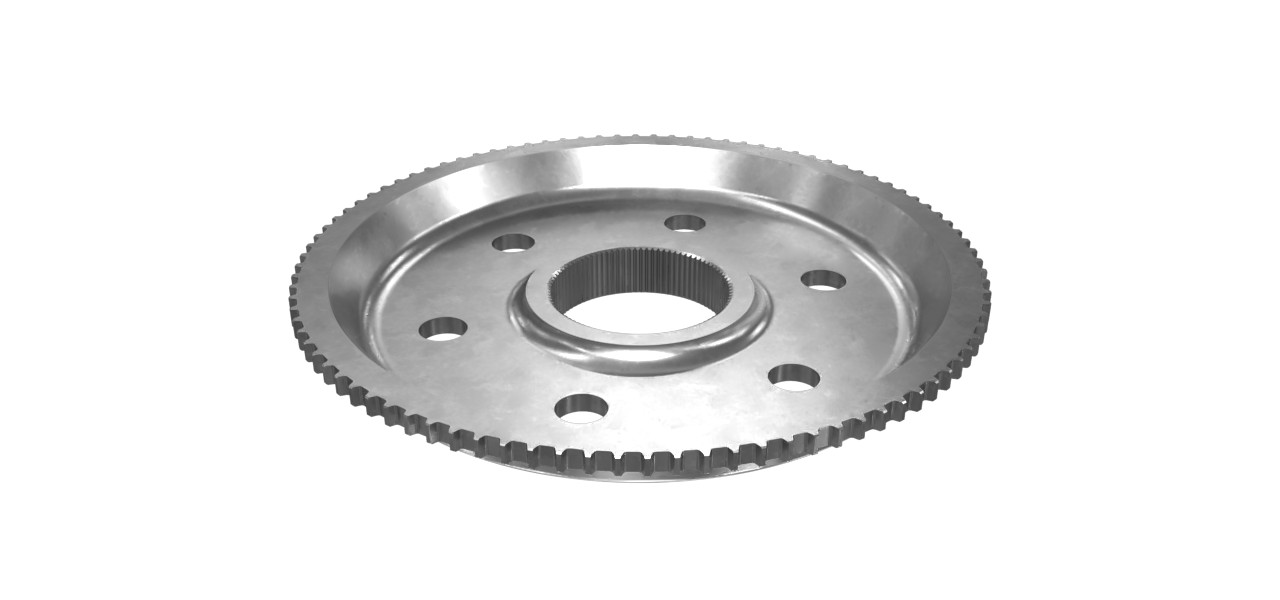

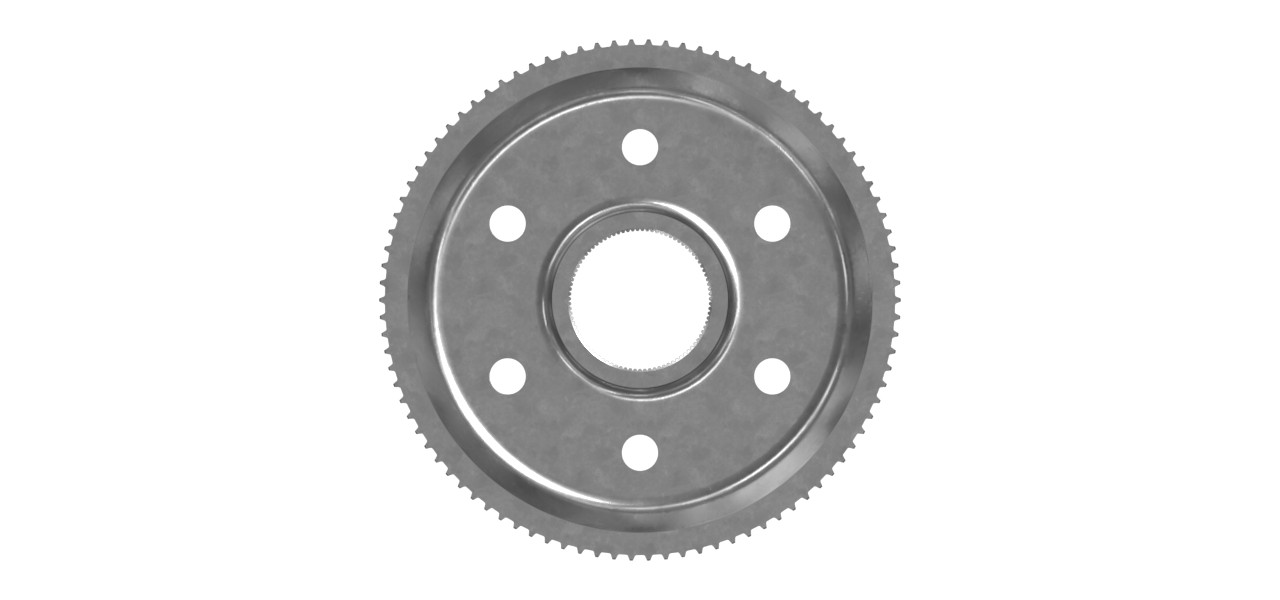

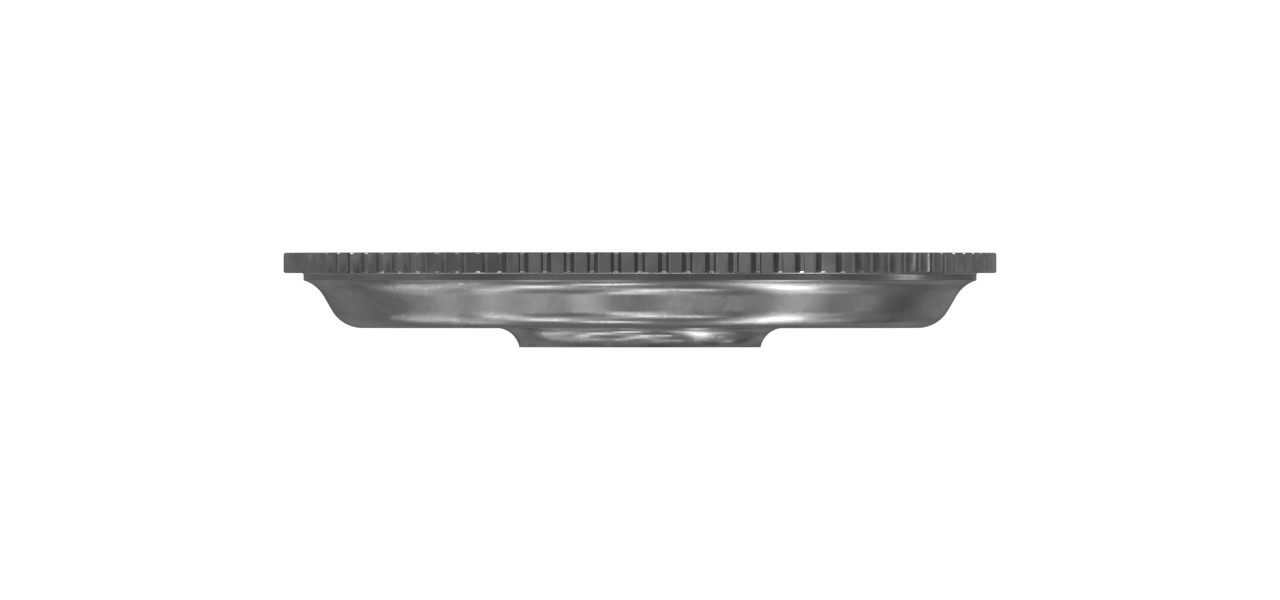

94 External Teeth Reaction Hub

SKU: 8E-2748
1 piece
Categories
Sellers

Details

Service component for the final drive group. Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Attributes: • Hardened steel hub• External Spline Teeth: 94• Internal Spline Teeth: 91Application:Consult your owner's manual or contact your local Cat Dealer for more information.

Specifications

Part TypeHub Reaction
Depth (cm)9.00
Width (cm)58.42
Height (in)2.795
Weight (kg)37.27
Volume (cm3)30,716.07
Outside Diameter (in)21.186

Compatible Models

BULLDOZER
6A6S6SU
PIPELAYER
PL72
RIPPER
6
TRACK-TYPE TRACTOR
D6GCD6HD6H IID6H XLD6H XRD6RD6R IID6R IIID6R LGPD6R STDD6R XLD6TD6T LGPD6T LGPPATD6T XLD6T XL PATD6T XWD6T XW PAT
WINCH
5656H
