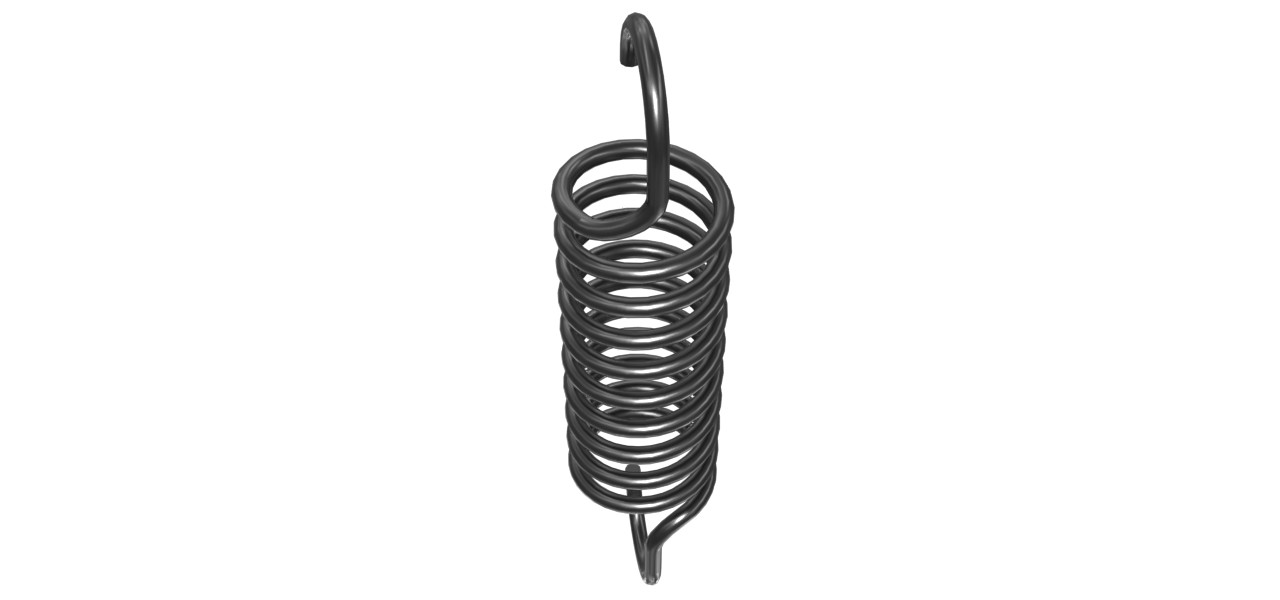

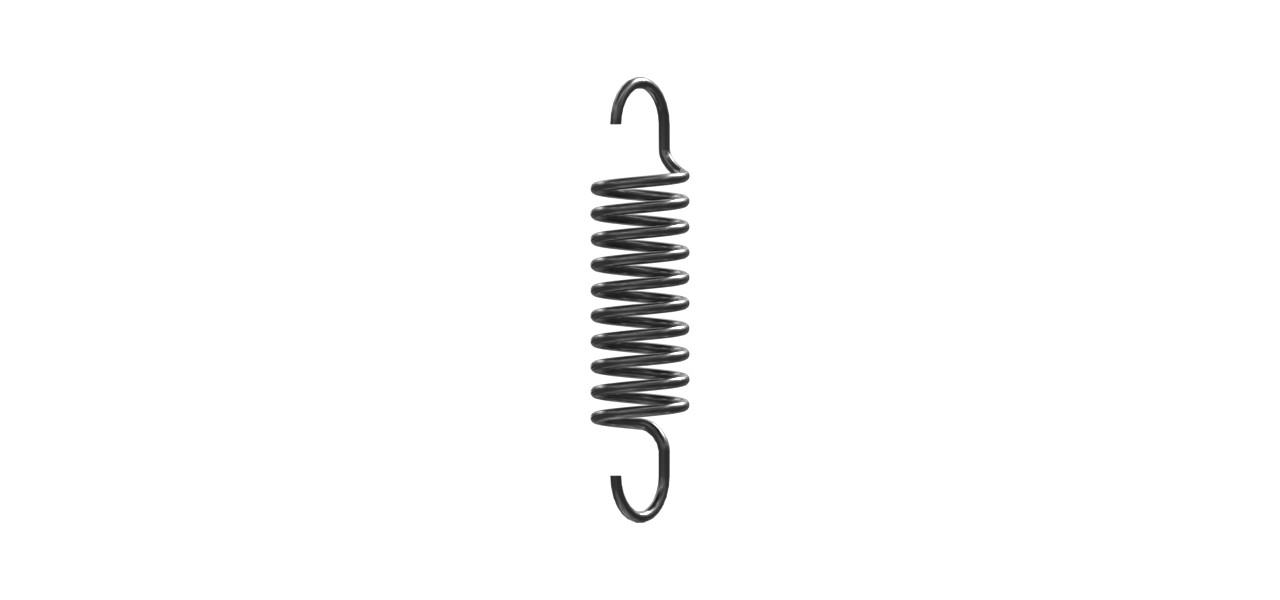

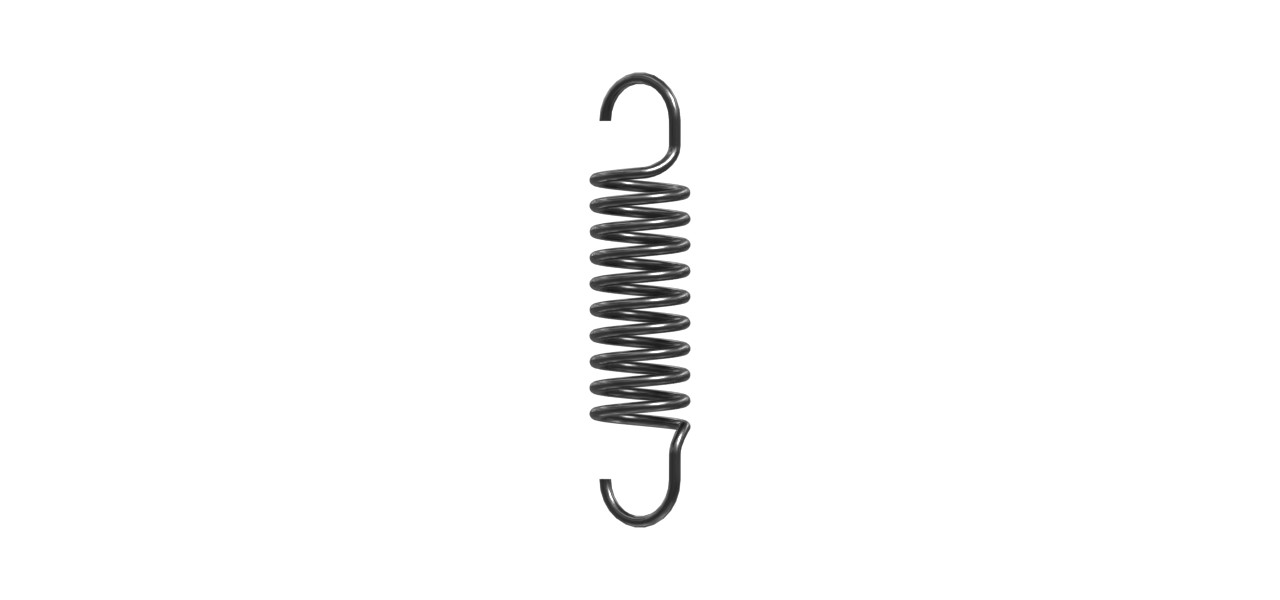

17.48mm OD Machine Hook Extension Spring

SKU: 8C-3442
1 piece
Categories
Sellers

Details

Machine hooks are made from the end coils of the spring by bending the end of the wire out to create the hook or loop. Crossover hooks are made from the end coils of the spring but are bent straight down the center of the spring first before then bending the wire out to create the hook or loop. This is a more stable hook than the machine hook.

Specifications

Part TypeSpring
Depth (cm)1.75
Width (cm)1.75
Weight (kg)0.01
Volume (cm3)16.38
Length - B (in)2
Wire Diameter - C (in)0.078
Outside Diameter (OD) - A (in)11/16

Compatible Models

BULLDOZER
10SU10U11SU11U6A6S6SU7A7S7SU7U8A8S8SU8U9C9S9SU9U
LANDFILL COMPACTOR
816816K826826G II826H826K836836G836H836K
LOAD HAUL DUMP
R1300R1300GR1300G IIR1600R1600GR1600HR1700GR2900R2900GR3000H
MOTOR GRADER
120120 GC120H120H ES120H NA120K12H12H ES12H NA12K135H135H NA140140 GC140H140H ES140H NA140K143H14H14H NA160160H160H ES160H NA160K163H163H NA16GC16H16H NA224H
PIPELAYER
578583R589
RIPPER
10116789
SOIL COMPACTOR
815815K825825K
TRACK-TYPE TRACTOR
D10D10ND10RD10TD10T2D11D11ND11RD11TD5MD5ND5R LGPD5R XLD5R2D6GCD6HD6H IID6H XLD6H XRD6MD6ND6N LGPD6N XLD6RD6R IID6R IIID6R LGPD6R STDD6R XLD6TD6T LGPD6T LGPPATD6T XLD6T XL PATD6T XWD6T XW PATD7HD7RD7R IID7R LGPD7R XRD8D8 GCD8GCD8LD8ND8RD8R IID8TD9D9 GCD9LD9ND9RD9T
WATER FORDING TRACTOR
D7R II
WHEEL DOZER
814814K824824K834834G834H834K844844H844K854854G854K
WHEEL LOADER
814K986986K988988 XE988F988F II988G988GC988H988K988K XE990990 II990H990K992D992G992K993993K994994D994F994H994K
WINCH
5656H5757H58L5959L59N
