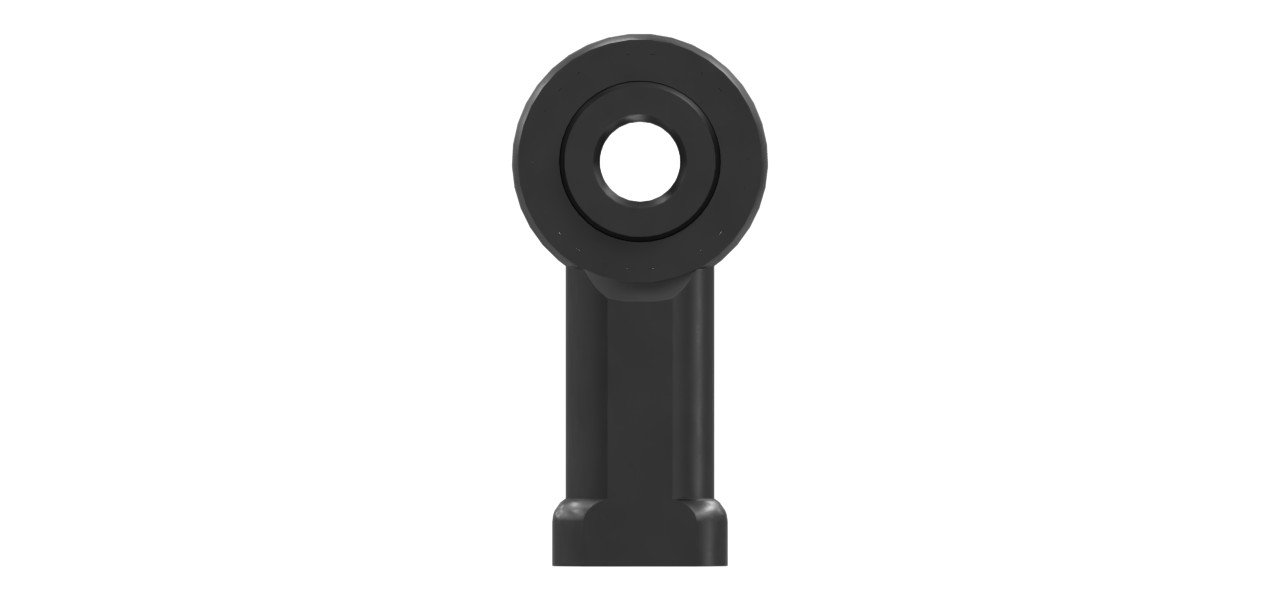

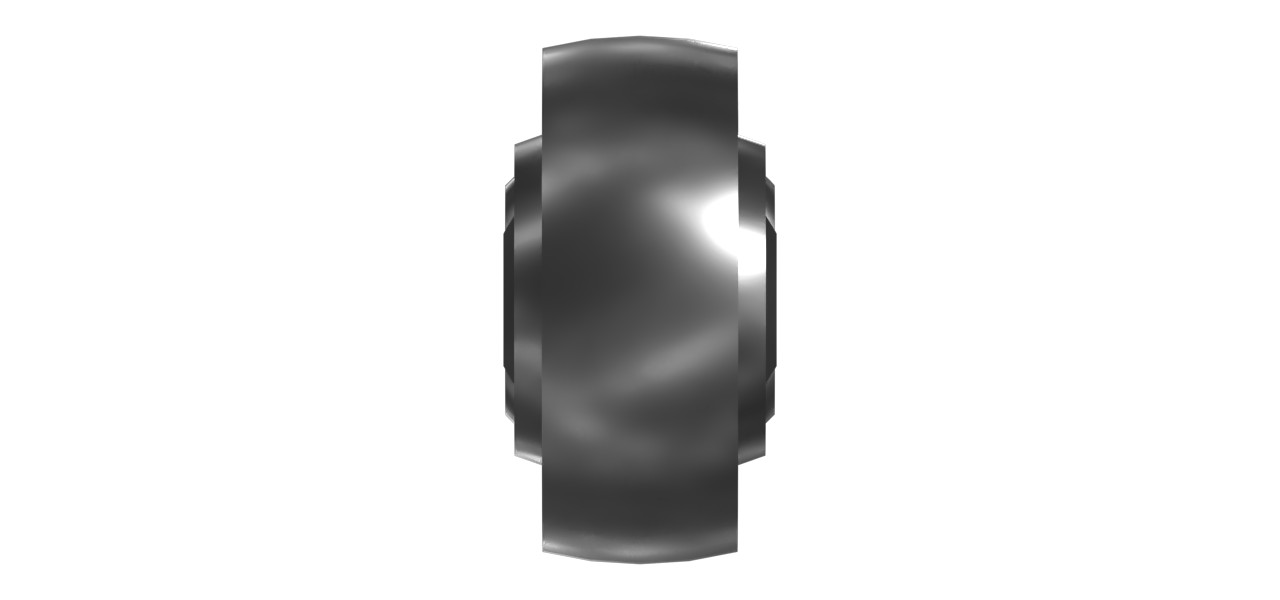

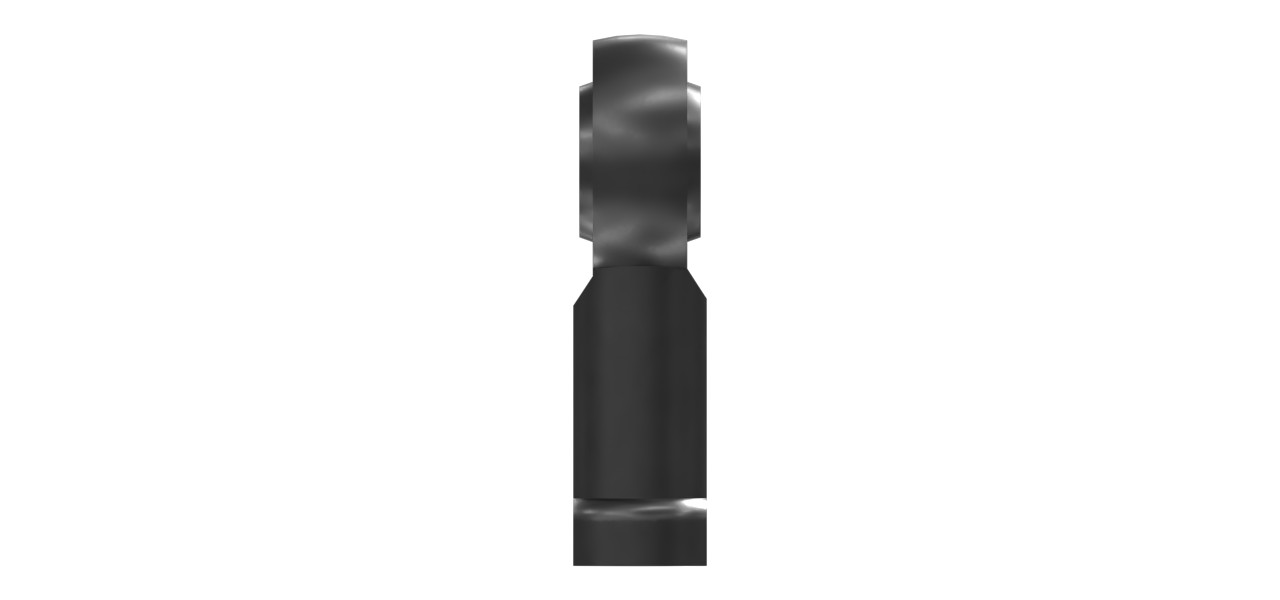

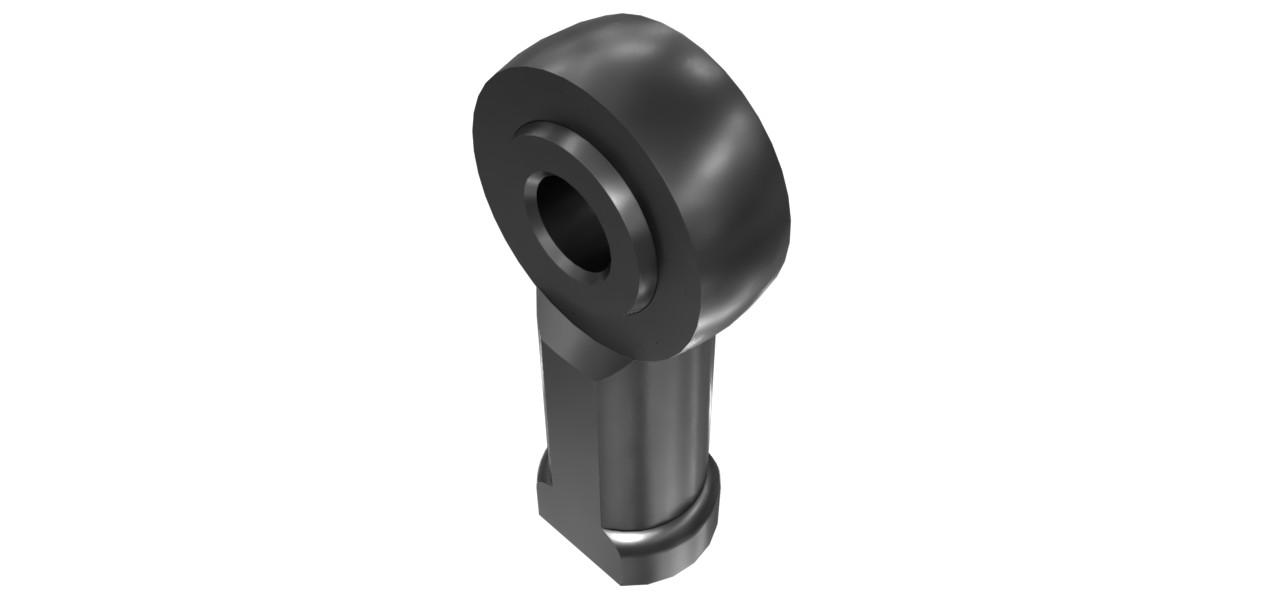

Rod End-Spherical

Cat® spherical rod ends are manufactured for long service life, minimal maintenance, and high operational reliability. Spherical rod ends provide a mechanical articulating joint that accommodates oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the attached shaft. Spherical rod ends consist of an eye-shaped head with an integral shank that forms the housing for a spherical bearing. Bearings reduce friction and provide protection between mating parts. They are specifically designed for low to medium speed, high load applications with little to medium side thrust. Attributes: • Size M6• Length: 30 mm (1.181 in)• Thread Size: M6• Thread Length: 11 mm (0.433 in)• Pivot Angle: 16°• Material: Steel• Large load capacity• Easy mounting and dismounting• Suitable for heavy static or alternate loads, and shock loadsApplication:Cat spherical rod ends are typically used in rod and linkage assemblies and control groups where strength and flexibility are crucial.
