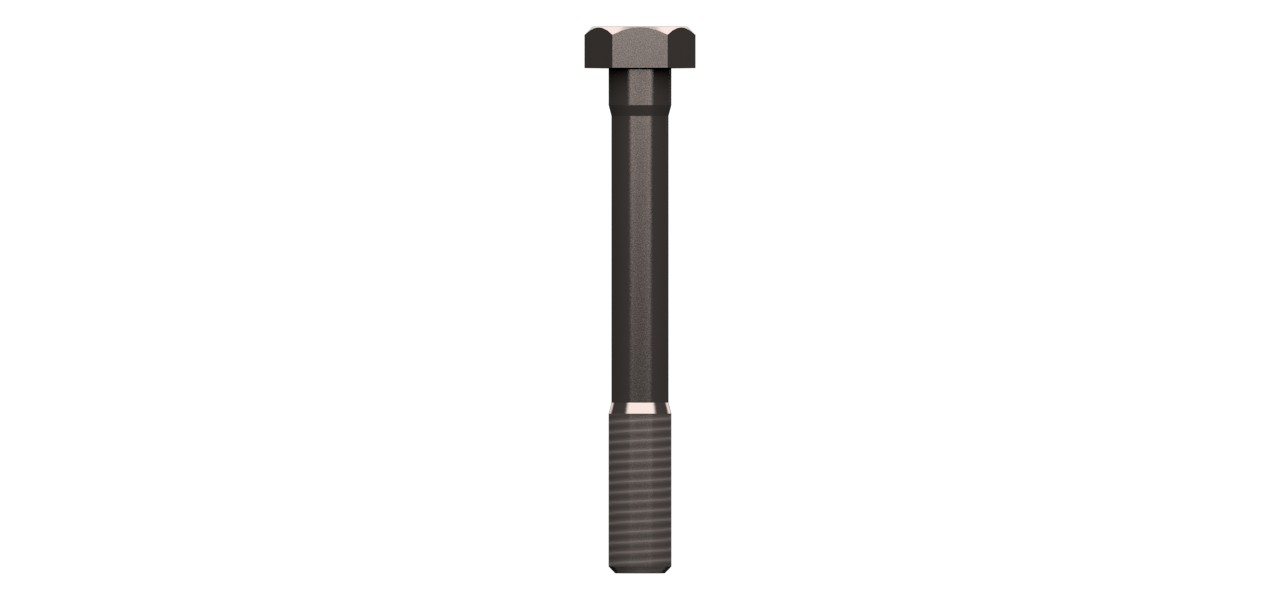

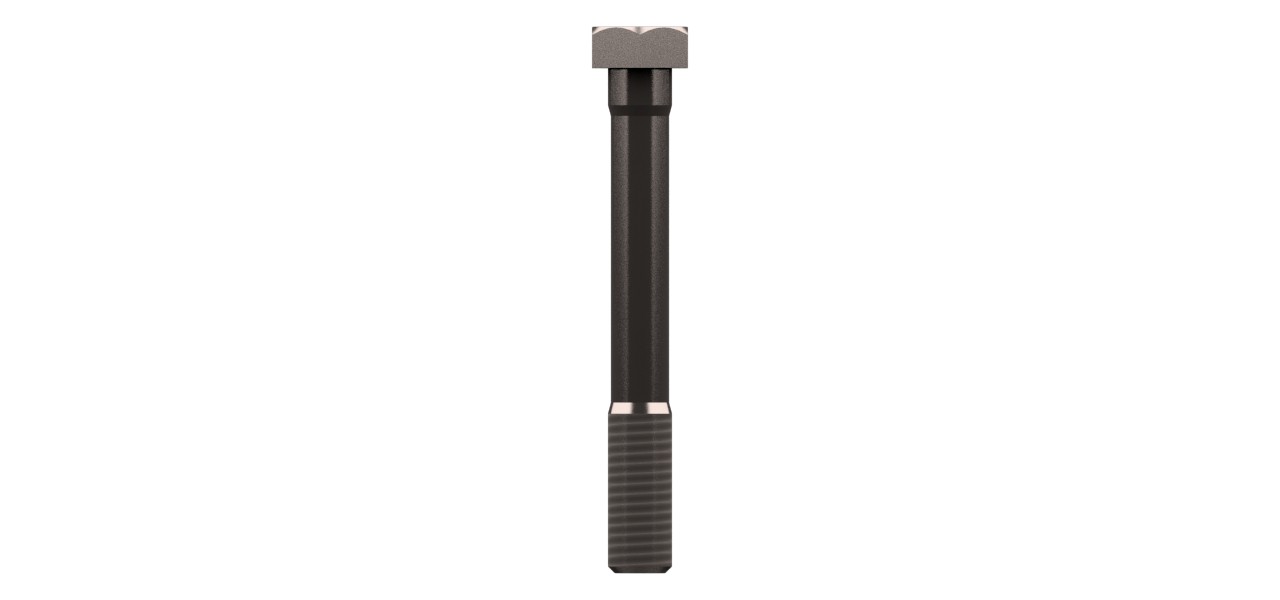

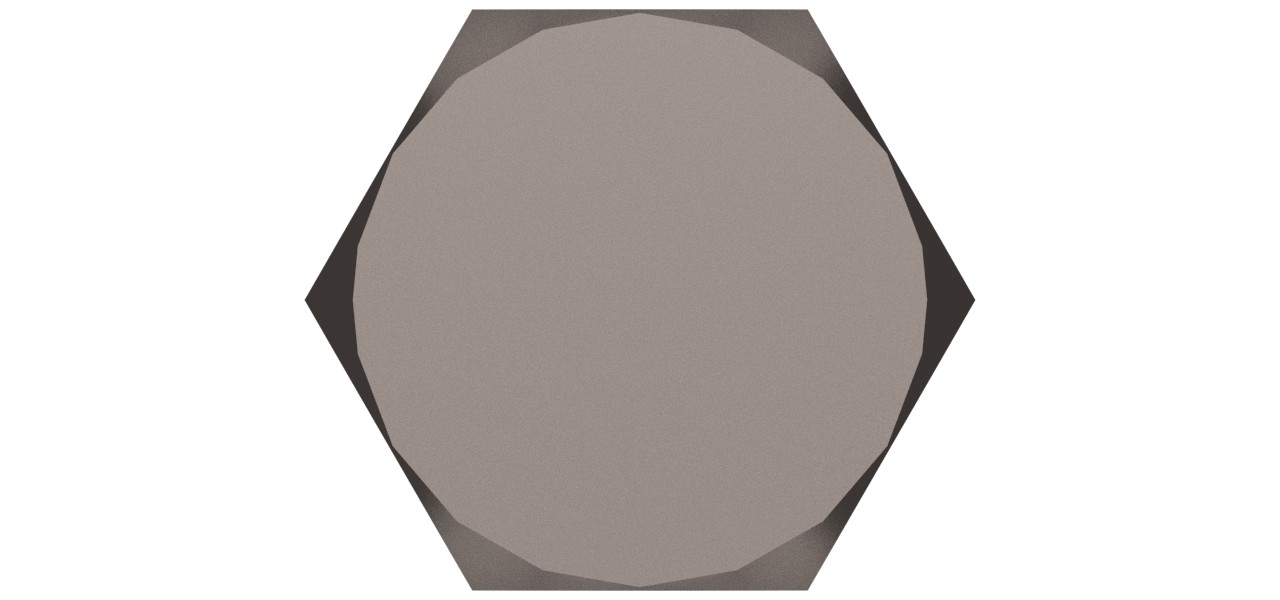

M24-3 x 190mm Hex Head Bolt

SKU: 7Y-5235
1 piece
Categories
Sellers

Details

Cat® fastener parts are designed for specific applications based on size, strength, clamp load, and past performance. This is information other manufacturers do not have. They are selected to last until rebuild or the life of the machine. While it may seem as though non-Cat hardware and fasteners are suitable for your machine, no other company knows your equipment like we do.Hex head bolts/screws offer the most robust driving feature. Attributes: •Cat fasteners are manufactured to precise specifications and are built for durability, reliability, productivity •Strength & Quality – Fasteners meet or exceed ISO, ASTM, ASME & SAE requirements.•Cat bolts, nuts, and washers are designed to work together as a system for maximum clamping force.•Coatings that meet special requirements for different applications (RoHS compliant).Applications: Cat bolts and the matching hardened washers and nuts form a performance based system which produces consistently high clamp loads. You can trust Cat Fasteners to help you build it, maintain it, or fix it - for most machine and workshop applications throughout the world.

Specifications

Part TypeBolt
Depth (cm)3.50
Width (cm)3.50
Weight (kg)0.75
Volume (cm3)251.13
Bolt Length (mm)190.0
Grip Length (mm)130.0
Thread Size (mm)M24
Thread Size (dia x pitch) (mm)M24x3

Compatible Models

EXCAVATOR
322 L322-A L325 L325-A FM L325-A L325C328D LCR330 L330 LN330-A330-A L330-A LN330B330B L330B LN330C330C FM330C L330C LN330C MH330D330D L330D LN330D MH336D336D L336D LN345B345B II345B II MH345B L345C345C L345C MH345D345D L345D L VG349D349D L349D2 L350 L350-A350-A L365B365B II365B L375-A375-A L
FRONT SHOVEL
5080
HYDRAULIC SHOVEL
6040
MOBILE HYD POWER UNIT
330D336D336D L345C345C L
SHOVEL
6040
TRACK-TYPE TRACTOR
D10D5D5R2D6GCD6ND6RD6R IID6R IIID6R LGPD6R STDD6R XLD6TD6T LGPD6T XLD6T XW
UNDERCARRIAGE
