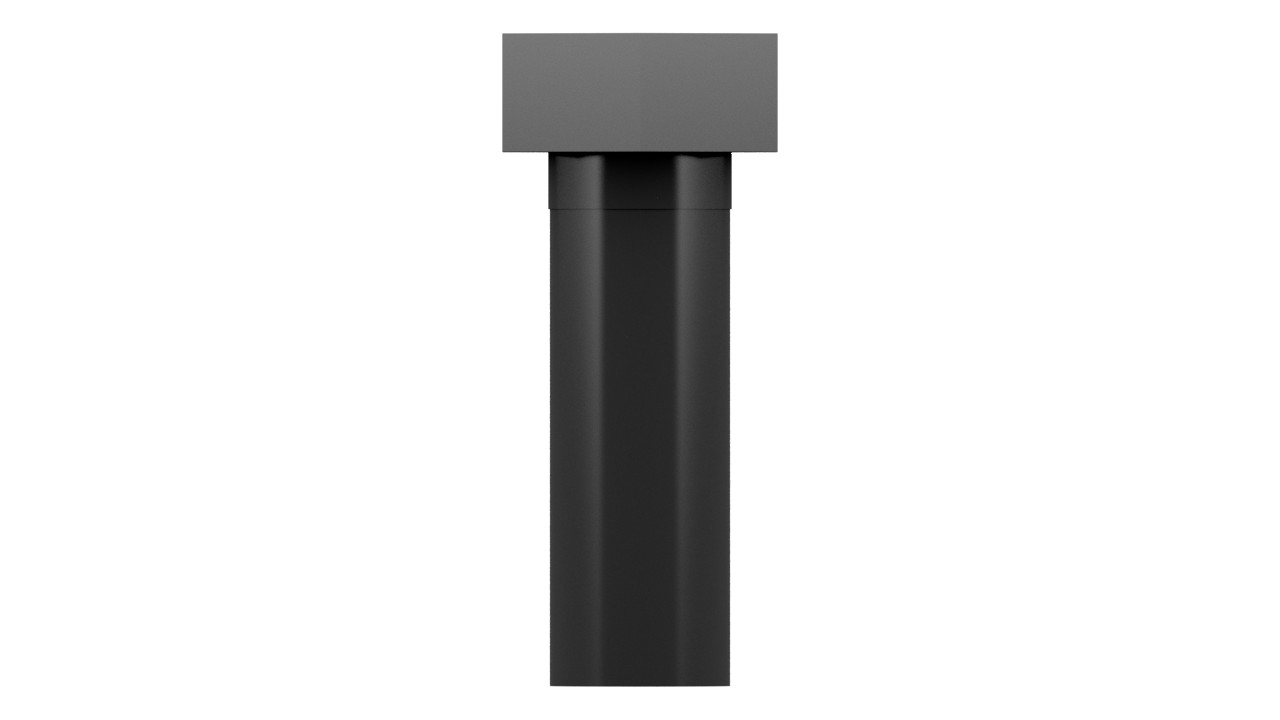

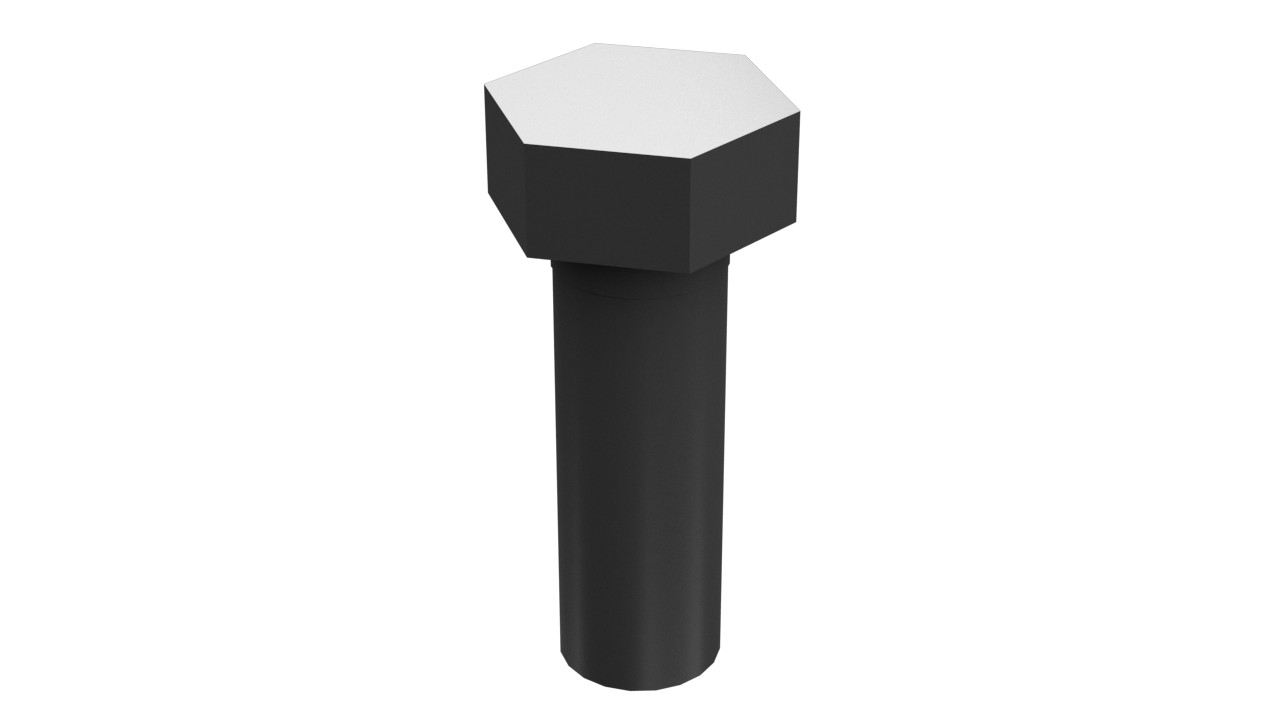

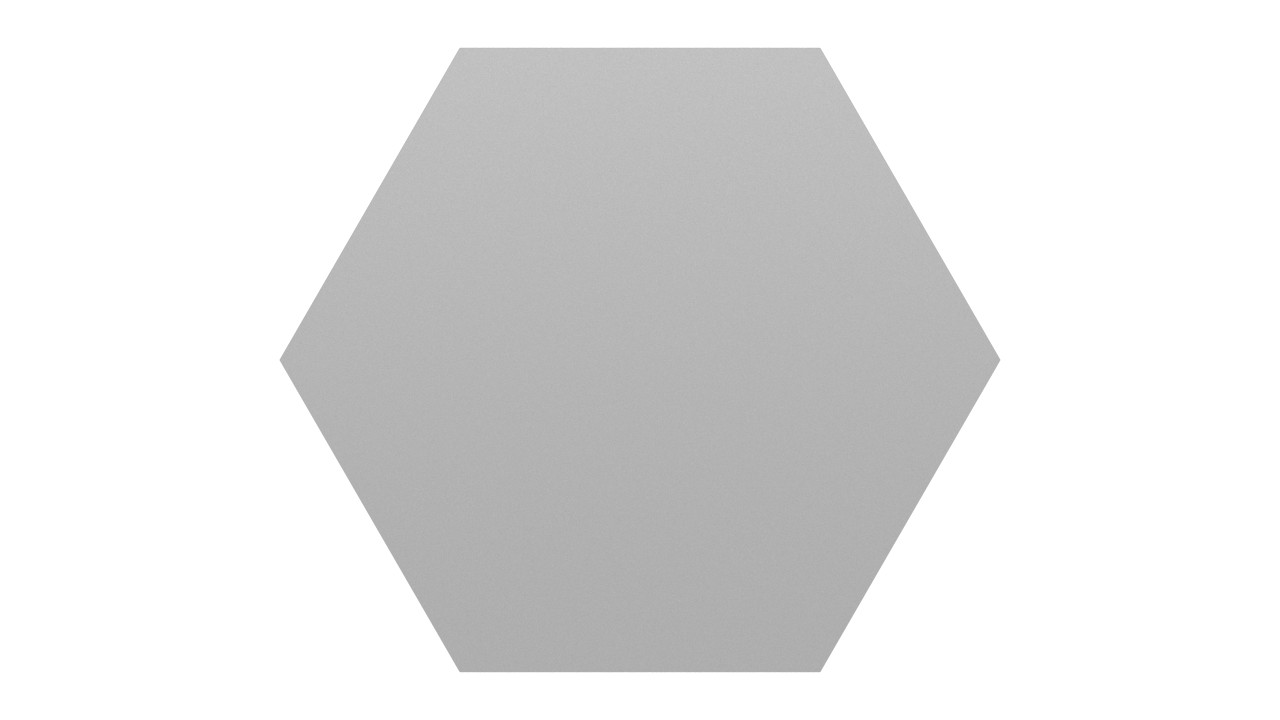

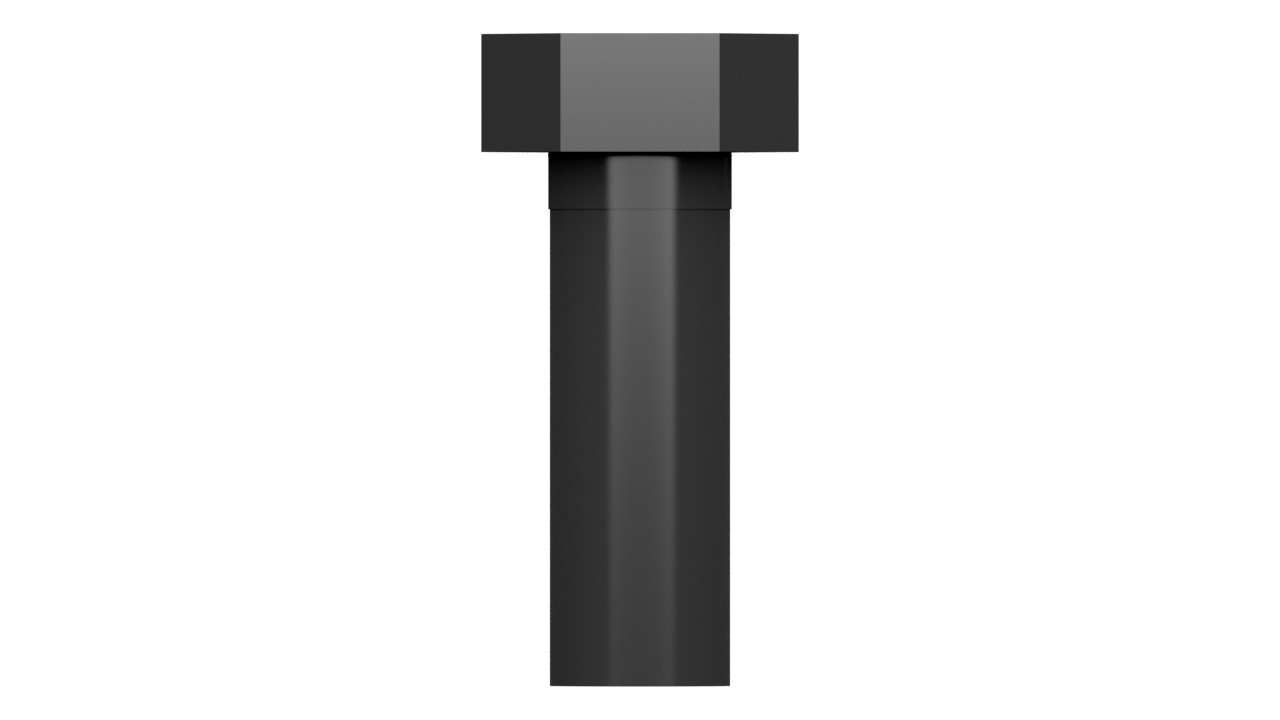

M24-3 x 70mm Hex Head Bolt
1 piece
Categories
Sellers
Details
Track bolts are used to connect the track shoes to the link assembly.
SKU: 7X-2576
Specifications
| Part Type | Bolt |
| Depth (cm) | 4.00 |
| Width (cm) | 4.00 |
| Weight (kg) | 0.33 |
| Volume (cm3) | 136.00 |
| Bolt Size (mm) | M24 |
| Bolt Length (mm) | 70.0 |
| Grip Length (mm) | 9.0 |
| Thread Size (mm) | M24 |
| Thread Size (dia x pitch) (mm) | M24x3 |
Compatible Models
| ASPHALT COMPACTOR | CB10CB13CB15CB16CB7CB8 |
| ASPHALT PAVER | AP-1000DAP-1000EAP-1000FAP-1055BAP-1055DAP-1055EAP-1055FAP-500EAP-555EAP-600DAP-655DAP1000AP1055AP500FAP555FAP600AP600FAP655AP655FAP655F LBG-2455CBG-2455DBG-260DBG1000EBG1055EBG500EBG555EBG600DBG655D |
| ASPHALT SCREED | AS2302CSE50 VSE50 VT |
| CHALLENGER | 354555 |
| COMPACTOR | CB10CB13CB15CB16CB7CB8CD10CD8 |
| CRUSHER | P325VHC-40 |
| DEMOLITION AND SORTING | G345 |
| DEMOLITION GRAPPLE | G332 |
| ELECTRIC ROPE SHOVEL | 74957495 HF |
| ENGINE | C175-16 |
| ENGINE - MACHINE | C32 |
| EXCAVATOR | 312D312D L315D L318C319C319D319D L319D LN320-A N320C320C FM320C L320D FM320E L320N322 L322 LN322-A322-A L322-A LN322-A N322B322B L322B LN322C322C FM322N323323D LN323D S323D SA323F OEM323F SA324D324D FM324D FM LL324D L324D LN325 L325 LN325-A325-A FM L325-A L325-A LN325B325B L325C325C FM325D325D FM325D FM LL325D L325D MH329D L329D LN330 L330 LN330-A330-A L330-A LN330B330B L330C330C FM330C L330C LN330C MH330D330D FM330D L330D LN330D MH336D L336D LN336E L336E LN340345B345B II345B II MH345B L345C345C L345C MH345D345D L345D L VG349D349D L349D2349D2 L349E349E L349E L VG349F L349F LXE350 L350-A350-A L352352F352F-VG365B365B II365B L365C375-A375-A L385B385C FSE110BE120BE200BEL200BM325D L MHM325D MHMH3040 |
| FELLING HEAD | HF181HF201HF221 |
| FORWARDER | 574574B |
| FRONT SHOVEL | 385C50805090B |
| GEN SET ENGINE | 35083512G3516C |
| GENERATOR SET | 35123512B3516B3516CC175-16GENSETC175-20C27C32G3516H |
| GRAPPLE-DEM/SORT | G325BVRG-40/2 |
| HAMMER | 1007070SH100H100SH70H70S |
| INDUSTRIAL ENGINE | 3512BC4.4 |
| LANDFILL COMPACTOR | 816816K826826G826G II826H826K |
| LOCOMOTIVE ENGINE | 3512E |
| LOGGER | 322C |
| MARINE AUXILIARY | 3508B3512B3512C |
| MARINE ENGINE | C175-16 |
| MATERIAL HANDLER | M325D L MHM325D MHMH3032MH3040MH3050MH3250MH3260 |
| MINI HYD EXCAVATOR | 306306.5307.5308308.5308E CR308E SR308E2 CR308E2 SR308E2CR308E2SR309310 |
| MINING EXCAVATOR | 5110B |
| MOBILE HYD POWER UNIT | 323D LN323F OEM324D LN325C325D325D L329D L329E330C330D330D L330F330FMHPU336D336D L336E336E HVG336F345C345C LC7.1 |
| MOTOR GRADER | 120120M12M14140140M14L14M14M-314M315016160160M16GC16M322424H24M33 AWD |
| MULTI PROCESSOR | MP15MP20MP30MP324MP332MP345VT30VT40 |
| OFF HIGHWAY TRUCK | 773775793793F798 AC |
| PETROLEUM ENGINE | 35123512CC175-16 |
| PETROLEUM GEN SET | 3512B3512C |
| PIPELAYER | 561N583TPL83 |
| PNEUMATIC COMPACTOR | CW-34CW12CW34PF-300PF-300BPF-300CPS-300PS-300BPS-300CPS-500 |
| PULVERIZER | P224P225P232P324P332VHP-40 |
| SHEAR | S3025S3035S3050 |
| SHEAR-DEMOLITION/SCRAP | S3025S3035S320S320BS325S325BS385BS385CVHS-30VHS-40 |
| SHOVEL LOGGER | 345C |
| SOIL COMPACTOR | 815815K |
| TOWED SCRAPER | TS180TS185TS220TS225 |
| TRACK FELLER BUNCHER | 1190T23912590521521B522522BTK1051TK722 |
| TRACK LOADER | 953953C953D953K963963C963D963K973973C973D973K |
| TRACK SKIDDER | 517527 |
| TRACK-TYPE TRACTOR | D1D10D11D2D3D3GD3K LGPD3K XLD3K2 LGPD3K2 XLD4D4GD4K LGPD4K XLD4K2 LGPD4K2 XLD5GD5K LGPD5K XLD5K2 LGPD5K2 XLD5MD5ND6D6 XED6GCD6KD6K LGPD6K XLD6K2D6K2 LGPD6K2 XLD6MD6ND6N XLD6RD6R IID6R IIID6R LGPD6R STDD6R XLD6TD6T LGPD6T XLD6T XWD6XED7ED7E LGPD8D8 GCD8GCD8RD8TD9D9 GC |
| TRUCK | 773G773G LRC773G OEM775G775G LRC775G OEM793F793F CMD793F OEM793F XQ797 |
| UNDERCARRIAGE | OEMS |
| UNDERGROUND ART TRUCK | AD22 |
| VIBRATORY COMPACTOR | CB-44BCB-523BCB-525BCB-534CB-534BCB-534CCB-534DCB-535BCB-54BCB-634CCB-634DCB-64BCB-66BCB-68BCB10CB46BCB7CD-44BCD-54BCP-433ECP-44CP-533ECP-54CP-56CP-563ECP-573ECP-663ECP-76CS-423ECS-433CCS-433ECS-44CS-533ECS-54CS-56CS-563ECS-573ECS-583ECS-76 |
| WHEEL DOZER | 814814F II814K844844H844K854G854K |
| WHEEL LOADER | 814K924G924GZ972H980G990990H990K992992G992K993K994K995 |
| WHEEL SKIDDER | 525D535D545D555D |
| WHEEL TRACTOR | 621H621K OEM623H627H |
| WHEEL TRACTOR-SCRAPER | 621621K623K623K LRC627K627K LRC632 |
| WHEELED EXCAVATOR | M313DM315DM316DM318DM320D2M322DM322D2M325BM325C MHM330DMH3040W330BW345B IIW345C MH |
| WORK TOOL | RC30 |
