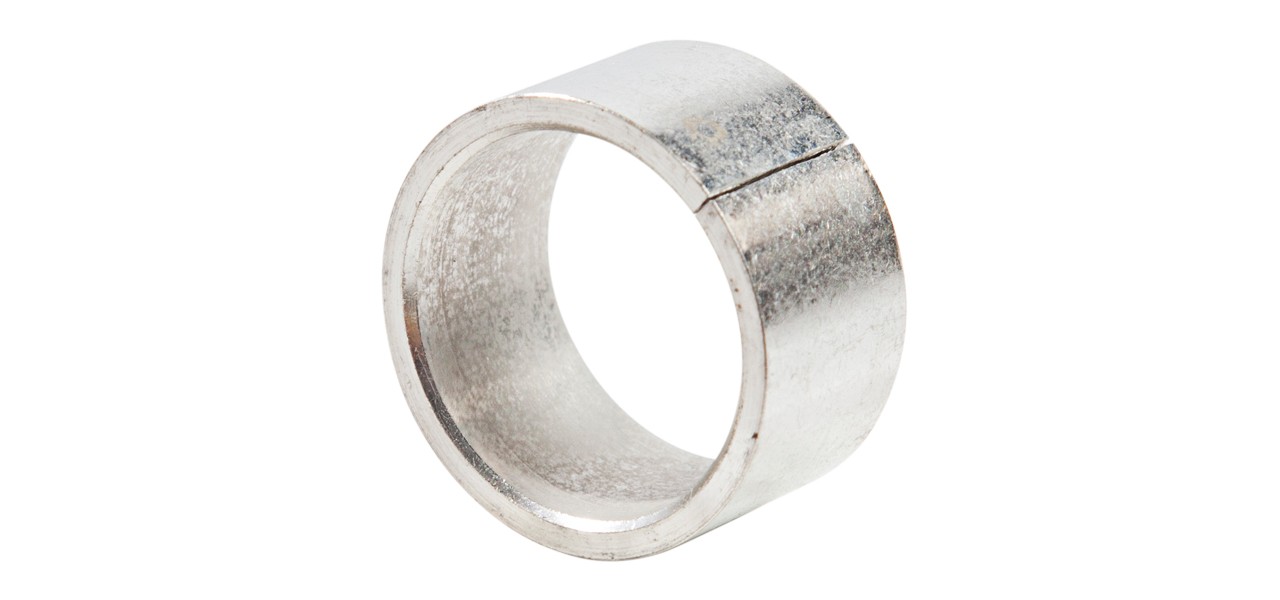

30.14mm Outer Diameter Sleeve Bearing

SKU: 7W-6335
1 piece
Categories
Sellers

Details

Cat® Sleeve Bearings and Bushings are designed to support rotating, oscillating and linear movement across machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for consistent effective lubrication of components.

Specifications

Part TypeBrg Sleeve
Depth (cm)0.20
Width (cm)15.24
Weight (kg)0.05
Volume (cm3)172.06
Overall Length (mm)15.4
Inside Diameter (mm)25.0
Outside Diameter (mm)30.0
Sleeve Inside Diameter (mm)25.081
Sleeve Outside Diameter (mm)30.137

Compatible Models

ENGINE - MACHINE
3208
EXCAVATOR
225225B229
GEN SET ENGINE
3208
LOGGER
227
MARINE ENGINE
3208
TRUCK ENGINE
1673C32083306
VIBRATORY COMPACTOR
CB-614CP-553CS-551CS-553
